Oil Pump: Removal

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Some illustrations may show the engine removed for clarity.
  • Removal steps in this procedure may contain installation details.
  1. Disconnect the battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

  2. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  3. Refer to: OIL PUMP CHAIN

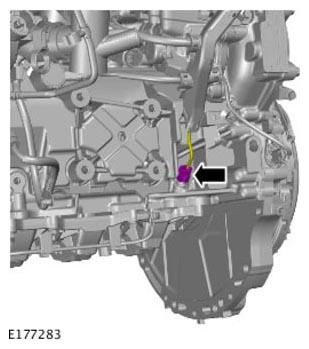

  4. G11308715Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

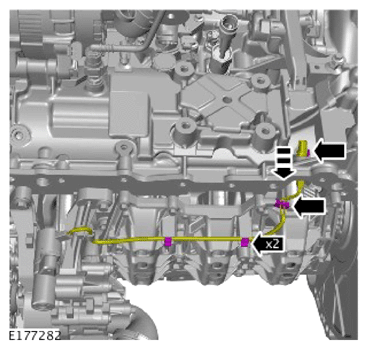

  5. G13997841Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

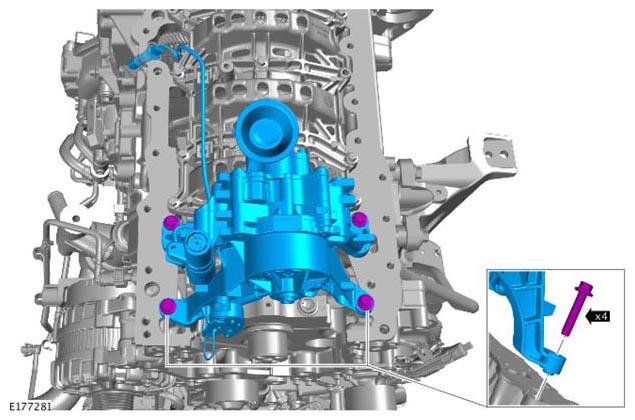

  6. G11308717Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 25Nm

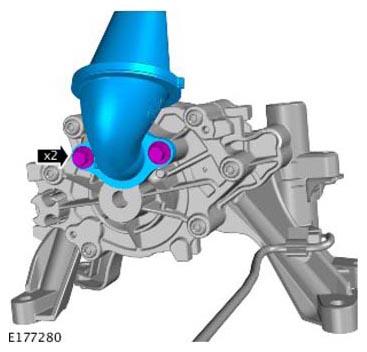

  7. NOTE: Do not disassemble further if the component is removed for access only.
    G11308718Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 12Nm
