Lower Timing Chain: Installation

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Make sure the Fuel pump sprocket is aligned with the timing mark on the cylinder block.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the timing chain.
CAUTION: Make sure the highlighted links on the timing chain are in line with the timing marks as illustrated.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install a new timing chain guide.
  Renew Part: Lower timing chain guide Quantity: 1 .
- Torque : 25Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install a new timing chain guide.

Renew Part: Upper timing chain guide Quantity: 1 .
CAUTION: Make sure the highlighted links on the timing chain are in line with the timing marks as illustrated.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 35Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install a new timing chain guide.
  Renew Part: Lower timing chain guide Quantity: 1 .
- Torque : 12Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install a new hydraulic timing chain tensioner.
  Renew Part: Timing chain tensioner Quantity: 1 .
- Torque : 12Nm
CAUTION: Make sure the lower timing chain tensioner is fully deployed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Make sure the highlighted links on the timing chain are in line with the timing marks as illustrated.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the timing chain.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install a new timing chain guide.
  Renew Part: Upper timing chain guide Quantity: 1 .
- Torque : 25Nm
CAUTION: Make sure the highlighted links on the timing chain are in line with the timing marks as illustrated.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the camshaft sprocket
- Install a new bolt, but do not fully tighten at this stage.
Renew Part: Camshaft sprocket bolt Quantity: 1 .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install a new timing chain guide.
  Renew Part: Lower timing chain guide Quantity: 1 .
- Torque : 25Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install a new hydraulic timing chain tensioner.
  Renew Part: Timing chain tensioner Quantity: 1 .
- Torque : 55Nm
CAUTION: Make sure the lower timing chain tensioner is fully deployed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

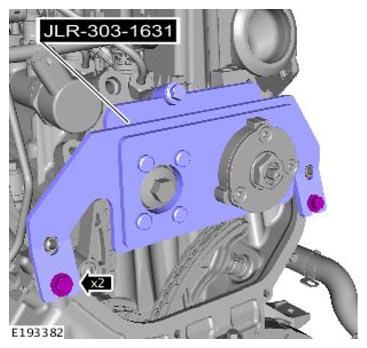

CAUTION: Use 2 suitable M6 X 20 bolts to install the special tool to the cylinder head.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Special Tool(s): JLR-303-1631
- Torque : 10Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install a new bolt.
Torque

Stage 1: 10Nm

Stage 2: Loosen: 90°

Stage 3: 25Nm

Stage 4: 40°
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the special tool.
- Special Tool(s): JLR-303-1631
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the special tool.
- Special Tool(s): JLR-303-1625
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the special tool.
- Special Tool(s): JLR-303-1630
Install the lower timing cover.
Refer to: LOWER TIMING COVER
Install the upper timing cover.
Refer to: UPPER TIMING COVER
Install the charge air cooler.
Refer to: CHARGE AIR COOLER
Connect the battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
