Intake Manifold: Removal

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING

General Equipment: 2 post lift
Always follow the Diesel fuel system health and safety precautions, when carrying out any repairs to the fuel system.
Refer to: DIESEL FUEL SYSTEM HEALTH AND SAFETY PRECAUTIONS
Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Remove the engine cover.
Refer to: ENGINE COVER - INGENIUM I4 2.0L DIESEL
Remove the left side secondary bulkhead panel.
Refer to: SECONDARY BULKHEAD LEFT PANEL - INGENIUM I4 2.0L DIESEL
Remove the Exhaust Gas Recirculation valve.
Refer to: HIGH PRESSURE EXHAUST GAS RECIRCULATION VALVE
NOTE: If equipped.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

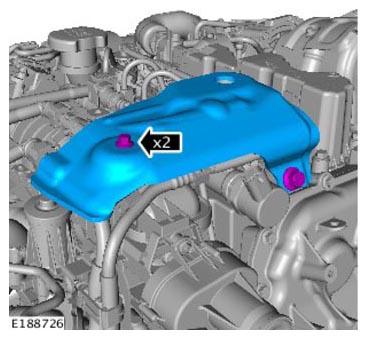

Remove the high pressure fuel rail shield.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

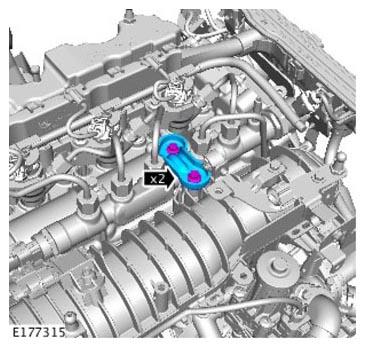

Remove the fuel supply pipe brackets.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the Emergency Park Release (EPR) cable.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

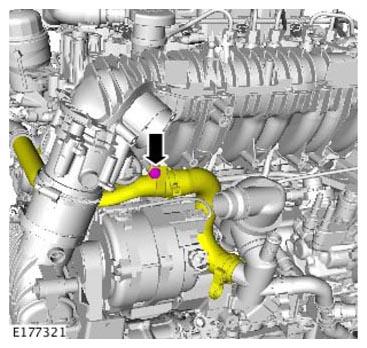

Release the coolant hose.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

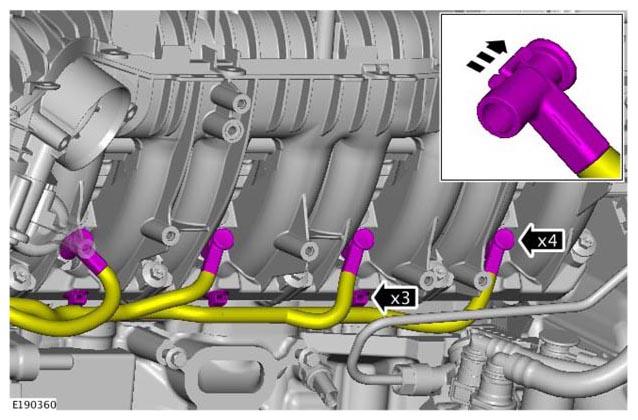

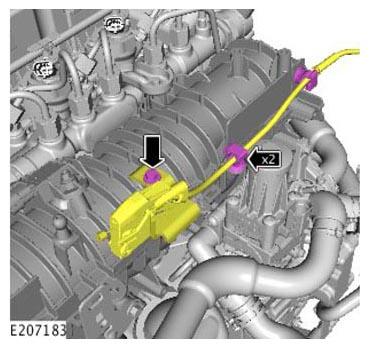

Disconnect and release the glow plug wiring harness.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

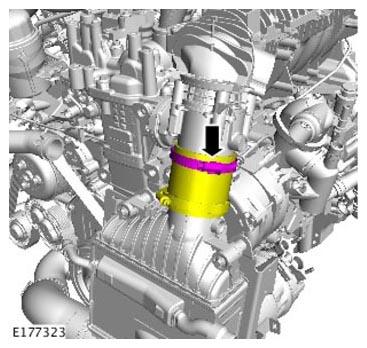

Release the intake manifold air intake hose.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

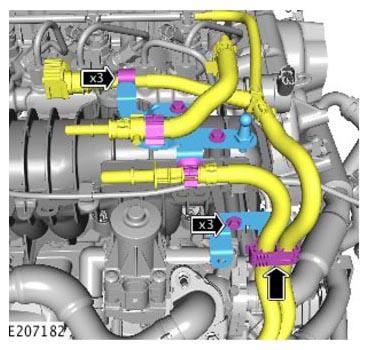

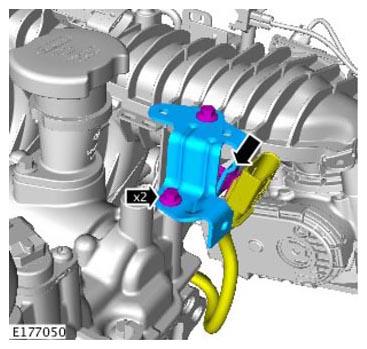

Remove the rear intake manifold support bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the front intake manifold support bracket.
CAUTION: Bolts must be released in the sequence illustrated.

Fig 1: Intake Manifold Bolts Loosening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the intake manifold and discard the gasket.
NOTE: Do not disassemble further if the component is removed for access only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

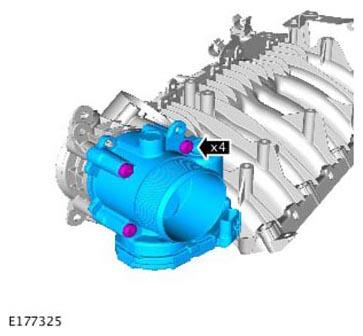

Remove the throttle body assembly. Discard the seal.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

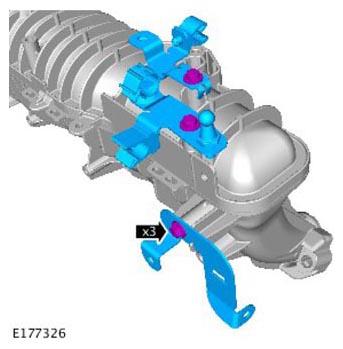

Remove the wiring harness brackets.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

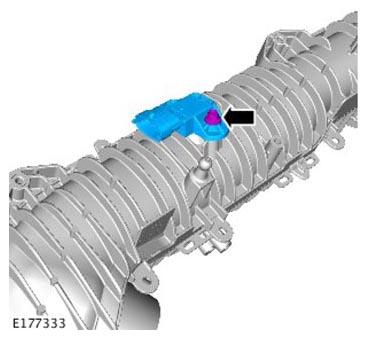

Remove the Manifold Absolute Pressure (MAP) sensor.
