Removal And Installation: Flywheel: Installation

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Under no circumstances should the flywheel retaining bolts be inserted into the crankshaft with the flywheel removed. Failure to follow this instruction will result in damage to the engine.

NOTE: Do not insert the bottoming tap more than the depth of the threaded holes (16mm). Apply tape to the bottoming tap 16mm from the end as a visual guide.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Using a suitable bottoming tap, clean out the threads.
- Using suitable brake cleaner, remove any foreign material from the threads.
WARNING: This step requires the aid of another technician.
CAUTION:
- Make sure that the mating faces are clean and free of foreign material.
- Make sure that new bolts are installed.
- Tighten the bolts in the sequence shown.

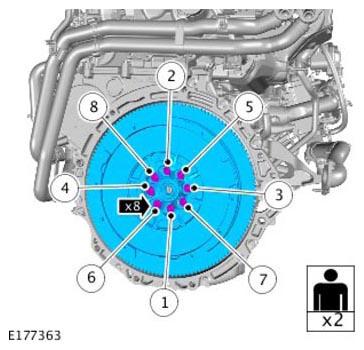

Fig 1: Flywheel Bolts Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Renew Part: Flywheel bolts Quantity: 1 .

Torque

Stage 1: 30Nm

Stage 2: 120°
To install, reverse the 3. removal procedure.
