Short Engine Assembly Renew: Notes

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

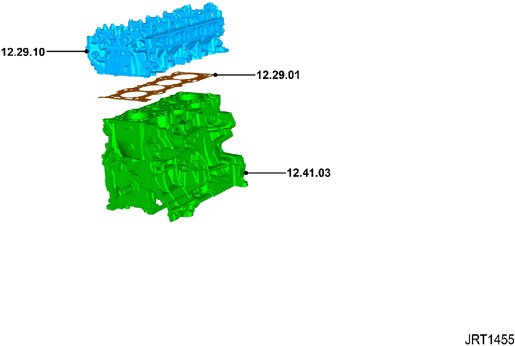

12.41.03 SHORT ENGINE ASSEMBLY - RENEW 2000 CC, GTDI 15.40
G13967074Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
12.41.03 SHORT ENGINE ASSEMBLY - RENEW 2000 CC, INGENIUM DIESEL, AUTOMATIC TRANSMISSION, 2WD 17.50
G13901646Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
12.41.03 SHORT ENGINE ASSEMBLY - RENEW 2000 CC, INGENIUM DIESEL, AUTOMATIC TRANSMISSION, 4WD 18.40
G13901646Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
12.41.03 SHORT ENGINE ASSEMBLY - RENEW 2000 CC, INGENIUM DIESEL, MANUAL TRANSMISSION, 2WD 16.50
G13901646Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

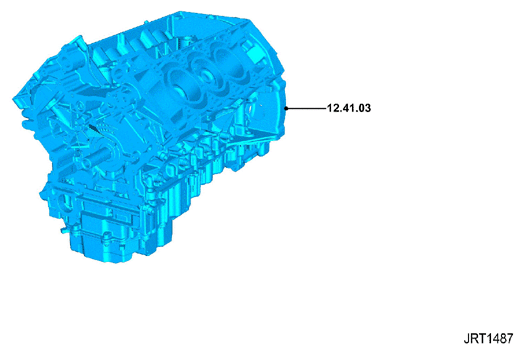

12.41.03 SHORT ENGINE ASSEMBLY - RENEW 3000 CC, AJ V6 (AJ126), 2WD 18.60
G13906549Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
12.41.03 SHORT ENGINE ASSEMBLY - RENEW 3000 CC, AJ V6 (AJ126), 4WD 19.50
G13906549Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
12.41.03 SHORT ENGINE ASSEMBLY - RENEW 5000 CC, AJ V8, SUPERCHARGED 19.70
G13906549Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
