Torque Specifications
WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

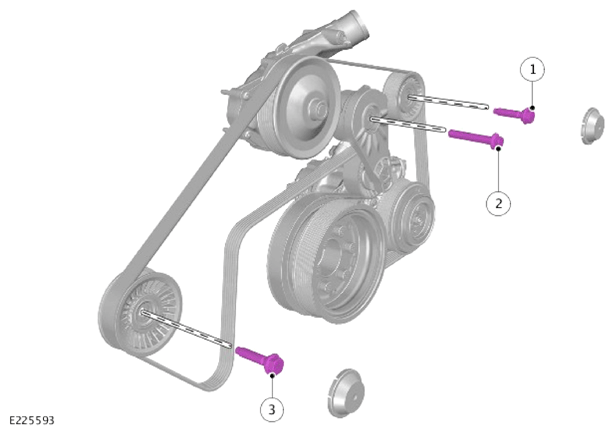

COMPONENT TORQUE LOCATION
COMPONENT TORQUE LOCATION
TORQUE SPECIFICATION
| DESCRIPTION | NM | LB-FT | |
|---|---|---|---|
| 1 | Accessory drive belt left idler pulley bolt | 47 | 35 |
| 2 | Accessory drive belt tensioner bolt | 47 | 35 |
| 3 | Accessory drive belt right idle pulley bolt | 47 | 35 |
| 4 | Supercharger belt upper idler pulley bolt | 47 | 35 |
| 5 | Supercharger belt tensioner bracket bolts | 25 | 19 |
| 6 | Supercharger belt lower idler pulley bolt | 47 | 35 |
| 7 | Supercharger belt tensioner retaining bolt | 47 | 35 |
