Exhaust System - Long Wheelbase: Removal

WARNING: This page is about a different car, the 2020 Jaguar XF and 2019 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Observe due care when working near a hot exhaust system.

NOTE: Removal steps in this procedure may contain installation details.

WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.
Refer to: ENGINE UNDERSHIELD

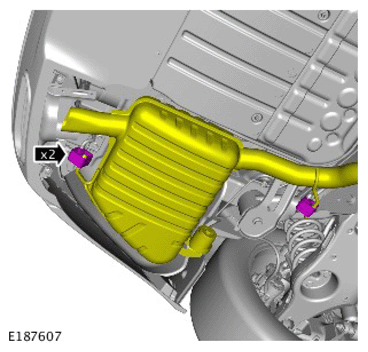

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 9 Nm

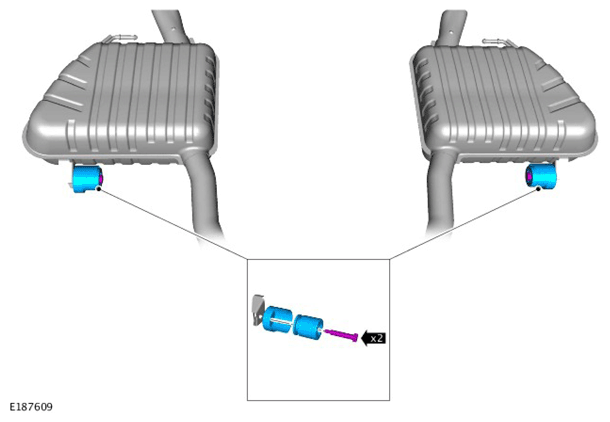

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 9 Nm

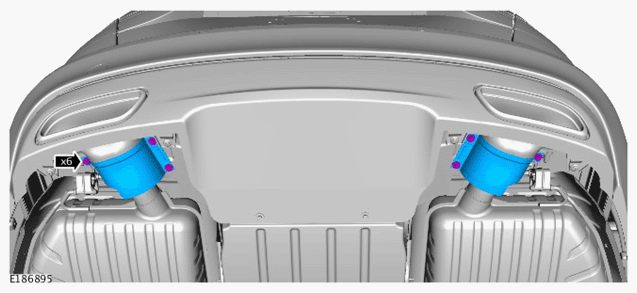

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

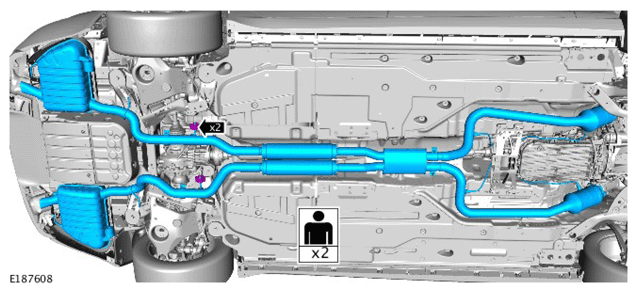

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 40 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 40 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 11 Nm
CAUTION: Make sure that the exhaust system is supported with suitable retaining straps.

NOTE: Repeat the step for the other side.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 30 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: Do not disassemble further if the component is removed for access only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Special Tool(s): 310-121

Torque : 48 Nm
CAUTION: Make sure that new bolts are installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Renew Part: Exhaust pipe rubber damper kit Quantity: 2 .

Torque : 22 Nm
