Component Torque Location

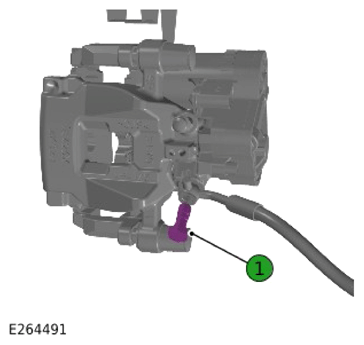

G13903091Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

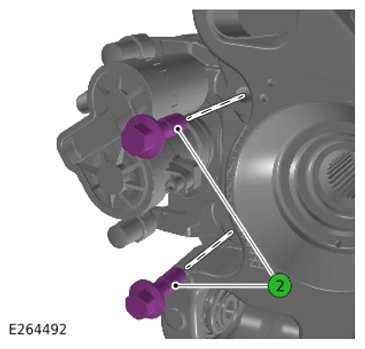

G13903092Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

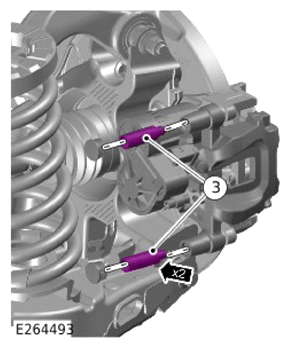

G13903093Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

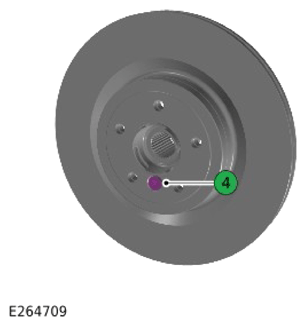

G13903094Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
G13903095Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
TORQUE SPECIFICATION

  DESCRIPTION NM LB-FT LB-IN
1 Brake hose to brake caliper banjo bolt 32 24 -
2 Brake caliper carrier bolts 110 81 -
3 Brake caliper slide pin bolts 28 21 -
4 Brake disc bolt 35 26 -
5 Brake pipe union 15 11 -
