Brake Disc : Removal

CAUTION: Brake discs must be renewed in axle sets.

NOTE: Removal steps in this procedure may contain installation details.

If this component is being renewed because of a customer complaint, make sure to follow the brake system Diagnosis and Testing procedure.
Refer to: DIAGNOSIS AND TESTING .
Connect the diagnostic tool and set the electronic park brake (EPB) to the maintenance position.
NOTE: This step is only required if the diagnostic tool is not available.

Refer to: ELECTRIC PARK BRAKE SERVICE MODE ACTIVATION AND DEACTIVATION
NOTE: This step is only required if the vehicle has no battery power.

Refer to: ELECTRIC PARK BRAKE RELEASE WHEN THE VEHICLE HAS NO ELECTRICAL POWER
WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.
Refer to: WHEEL AND TIRE

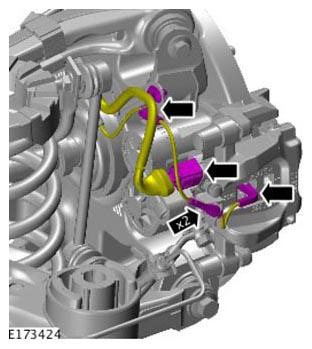

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION:
- Make sure that the brake hose does not support the full weight of the brake caliper assembly.
- Discard the bolts.

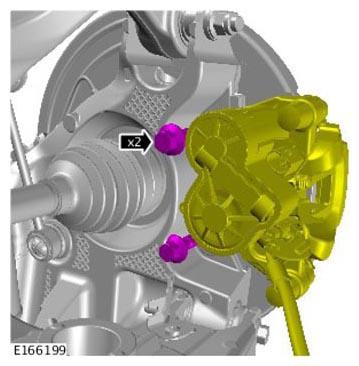

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Tie aside with a suitable tie strap.

Renew Part: Brake caliper carrier bolt(s) Quantity: 2.

Torque

Stage 1: 70 Nm

Stage 2: 120°

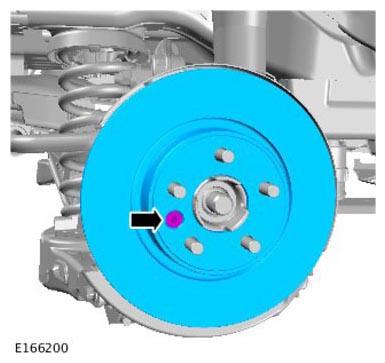

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 35 Nm
