Brake Caliper : Removal

WARNING: If the brake pad wear warning light has been activated, a new brake pad wear sensor must be installed.

CAUTION: Brake fluid will damage paint finished surfaces. If spilled, immediately remove the fluid and clean the area with water.

NOTE: Removal steps in this procedure may contain installation details.

Connect the diagnostic tool and set the electronic park brake (EPB) to the maintenance position.
NOTE: This step is only required if the diagnostic tool is not available.

Refer to: ELECTRIC PARK BRAKE SERVICE MODE ACTIVATION AND DEACTIVATION
NOTE: This step is only required if the vehicle has no battery power.

Refer to: ELECTRIC PARK BRAKE RELEASE WHEN THE VEHICLE HAS NO ELECTRICAL POWER .
WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle
Refer to: WHEEL AND TIRE .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

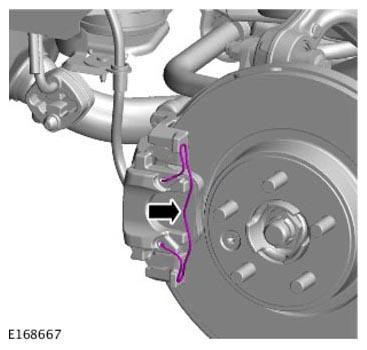

CAUTION: The brake pad wear indicator sensor is easily damaged. Do not use a lever to remove the sensor. Use fingers only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Inspect the brake pad wear sensor for signs of wear or damage. Install a new sensor if necessary.
CAUTION:
- Inspect the brake hose sealing washers for signs of damage, if damage is present discard the sealing washers.
- Be prepared to collect escaping fluids.
NOTE: Make sure that all openings are sealed.

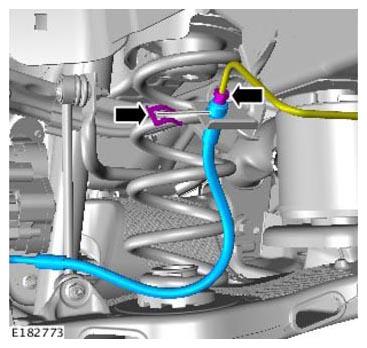

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 32 Nm
CAUTION: Be prepared to collect escaping fluids.

NOTE: Make sure that all openings are sealed.

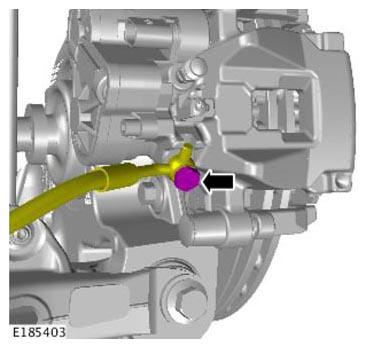

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the flexible brake hose.

Renew Part: Brake hose Quantity: 1.

Torque : 15 Nm

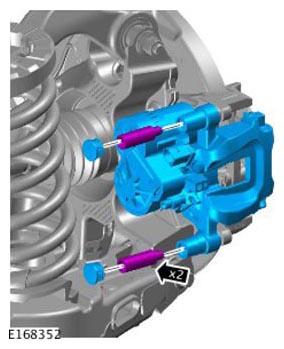

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 28 Nm

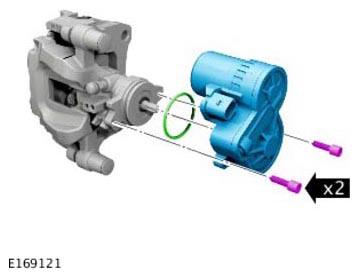

CAUTION: Remove and discard the O-ring seal.

NOTE: Do not disassemble further if the component is removed for access only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Renew Part: Electric park brake actuator O-ring seal Quantity: 1.

Torque : 8 Nm
