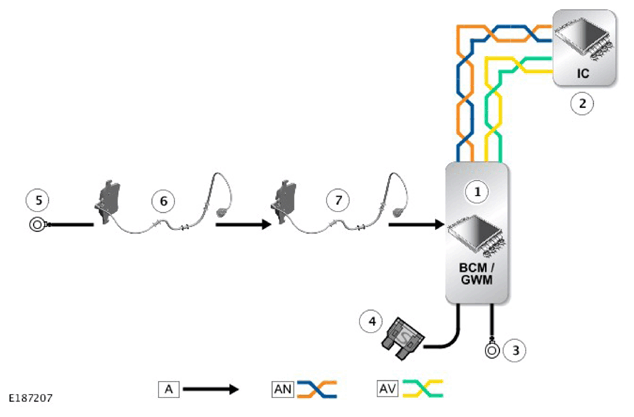

Control Diagram

G11326489Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Body Control Module/Gateway Module (BCM/GWM)
2 Instrument Cluster (IC)
3 Ground
4 Supply
5 Ground
6 Brake Pad Wear - Front Left
7 Brake Pad Wear - Rear Right
