Removal And Installation: Installation

WARNING: This page is about a different car, the 2018 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

Follow the tightening sequence illustrated.

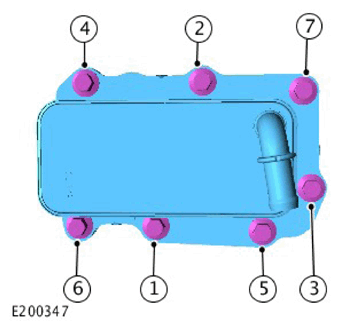

Fig 1: Oil Coller Bolts Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install a new gasket.
  Renew Part: Oil cooler gasket Quantity: 1.
- Install and tighten the bolts in the sequence illustrated.
- Torque Specifications:
  Stage 1: 15 Nm

  Stage 2: 25 Nm
Connect the oil cooler hose.
Install the turbocharger.
Refer to: Turbocharger .
