Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Disconnect the battery ground cable.
Refer to: Battery Disconnect and Connect (General Procedures).
WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.

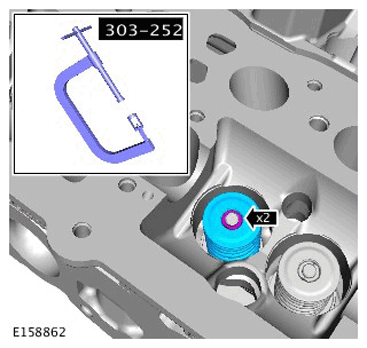

Refer to: RIGHT CYLINDER HEAD (G1853107) .
Refer to: LEFT CYLINDER HEAD (G1853106) .
CAUTION:
- Make sure that the area around the component is clean and free of foreign material.
- Make sure the working surfaces are thoroughly clean to avoid contamination of the sensitive components.
- Make sure that the valve grinding paste is kept away from the valve stem.

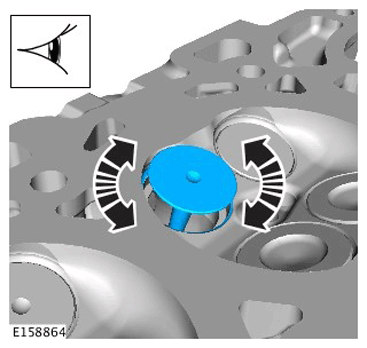

- Place a small amount of fine valve grinding paste evenly around the contact face of the valve.
- Place the valve in position and, using a suitable valve grinding tool, rotate the valve back and forth a few degrees on its seat, using light pressure.
- Raise the valve frequently during lapping and turn it into a new position after a few laps or rotations.
- Lap only until a continuous but narrow lapping mark is visible on both the valve seat and valve face.
- Thoroughly clean all surfaces to remove traces of valve grinding paste from the cylinder head, valve seat and valve face.

Repeat steps 5 to 8 for the remaining valves.
