Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Disconnect the battery ground cable.

    Refer to: Battery Disconnect and Connect (General Procedures).

  2. Remove the supercharger.

    Refer to: Supercharger .

  3. Remove the fuel rail.

    Refer to: Right Fuel Rail .

  4. G11285324
    1. Remove the bolt.
    1. Disconnect the electrical connectors.

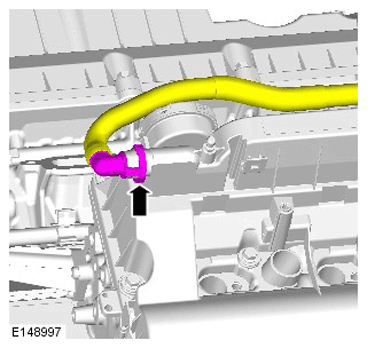

  5. G11286959

    Remove the breather hose.

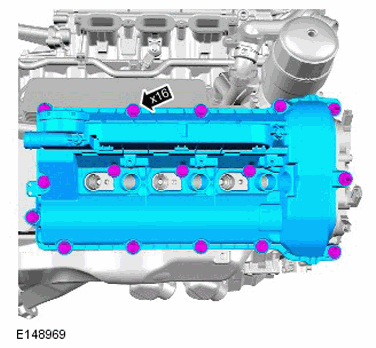

  6. G11286960

    Remove the valve cover.
