Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Some illustrations may show the engine removed for clarity.

All vehicles

  1. Disconnect the battery ground cable.

    Refer to: Battery Disconnect and Connect (General Procedures).

  2. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.

  3. Refer to: ACCESSORY DRIVE BELT (Removal and Installation).
  4. Refer to: RIGHT CATALYTIC CONVERTER (Removal and Installation).

4WD vehicles

  1. Refer to: LEFT ENGINE MOUNT - AWD  (Removal and Installation).

All vehicles

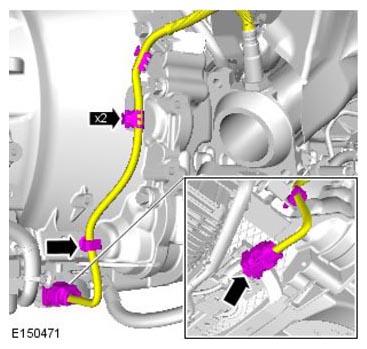

  1. G11309780
  2. G11309781

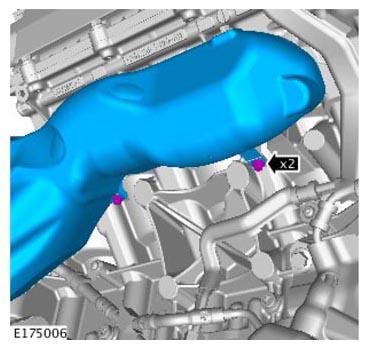

  3. G11309782
  4. G11309783
  5. CAUTION: Discard the bolts.
    NOTE:
    • Discard the gasket.
    • Make sure that the position of the spacers is noted before removal of the manifold.

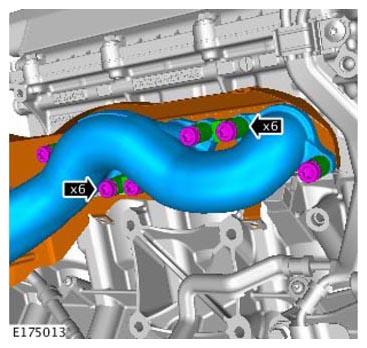

    G11309784
  6. NOTE: Do not disassemble further if the component is removed for access only.
    G11309785

    Special Tool(s):  310-121
