Removal And Installation: Installation

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:
- Machine the minimum thickness of material from the cylinder head to meet specification. If a selection of cylinder head gaskets are available, increase the thickness of the cylinder head gasket by one size.
- Make sure that the mating face is clean and free of foreign material.
- An acceptable flatness of the cylinder head is 0.2mm.
NOTE:
- Prior to having the cylinder head machined, prior approval is required by Jaguar or Land Rover engineering.
- If the cylinder head requires machining, this must be carried out by a local engineering company.
- Some variation in the illustrations may occur, but the essential information is always correct.
Using a suitable metallic straight edge and feeler gauge, measure the cylinder head face in the areas illustrated. NOTE THE MAXIMUM VALUE.
WARNING: Make sure care is taken when handling the cylinder head gasket.
CAUTION:
- The head gasket must be installed over the cylinder block dowels.
- Make sure that the mating faces are clean and free of foreign material.

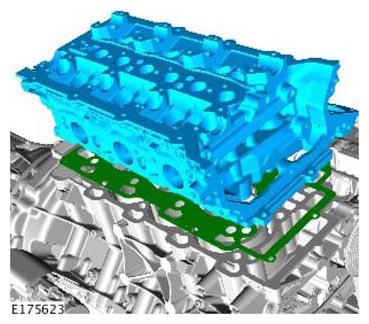

NOTE: Install a new cylinder head gasket.
CAUTION: Make sure that new cylinder head bolts are installed.

NOTE: Tighten the bolts in the indicated sequence.

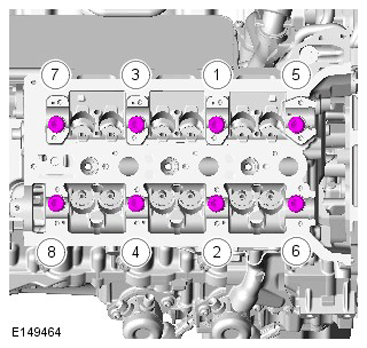

Fig 1: Right Side Cylinder Head Bolts Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque Specification: 20 Nm
NOTE: Tighten the bolts in the indicated sequence.

Fig 2: Right Side Cylinder Head Bolts Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque Specification: 35 Nm
NOTE: Slacken the bolts in the sequence shown.

Fig 3: Right Side Cylinder Head Bolts Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: Tighten the bolts in the indicated sequence.

Fig 4: Right Side Cylinder Head Bolts Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque Specification: 35 Nm
NOTE: Tighten the bolts in the indicated sequence.

Fig 5: Right Side Cylinder Head Bolts Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque Specification: 90°
NOTE: Tighten the bolts in the indicated sequence.

Fig 6: Right Side Cylinder Head Bolts Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque Specification: 120°

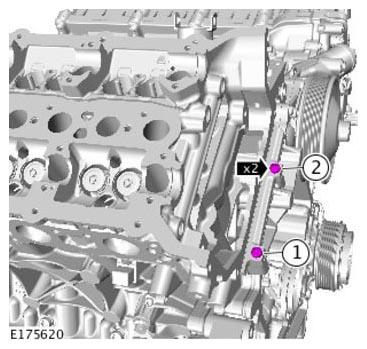

Torque Specification: 25 Nm
NOTE: Tighten the bolts in the indicated sequence.

Fig 7: Right Side Cylinder Head Bolts Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque Specification: 12 Nm
CAUTION:

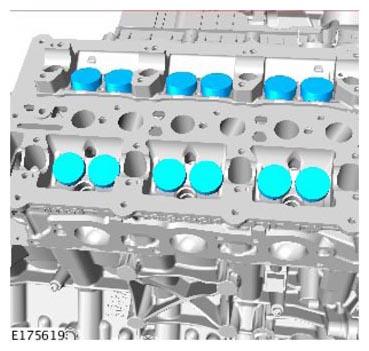

- If a new cylinder head has been installed then new tappets must be installed.
- If the cylinder head is being removed without a new component being installed, the tappets must be installed in their original positions.
- Lubricate the tappets with clean engine oil.

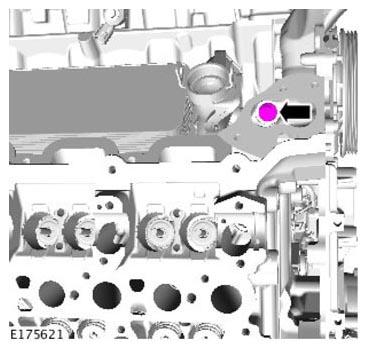

NOTE: Install a new gasket.

Torque Specification: 12 Nm

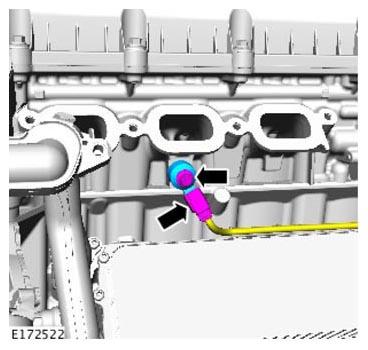

CAUTION: A new O-ring seal is to be installed.

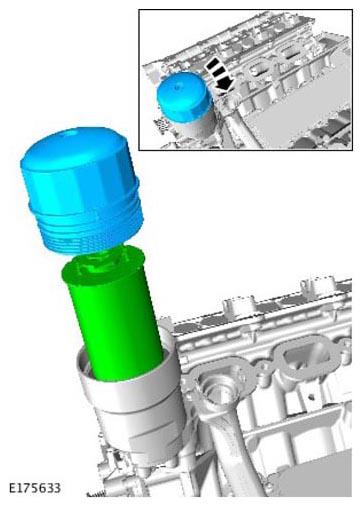

NOTE: Install a new engine oil filter.

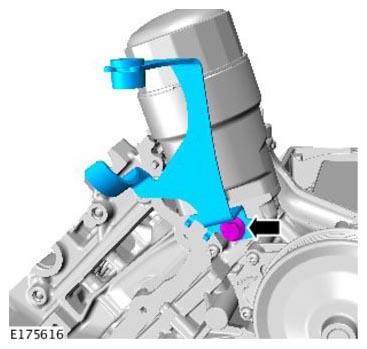

Torque Specification: 10 Nm

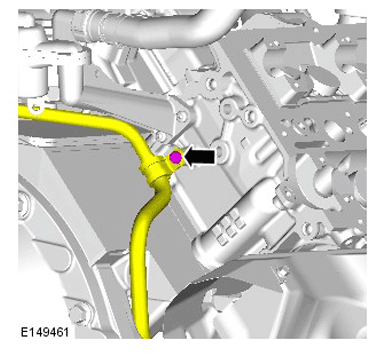

NOTE: Install new seals.

Torque Specification: 10 Nm
Torque Specification: 20 Nm
Torque Specification: 10 Nm
Refer to: Camshaft RH (Installation).
Refer to: Exhaust Manifold RH (nstallation).
Refer to: Secondary Bulkhead Panel LH - V6 S/C 3.0L Petrol (Installation).
Refer to: Battery Disconnect and Connect (General Procedures).
