Removal And Installation: Installation

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
  1. CAUTION: A new O-ring seal is to be installed.

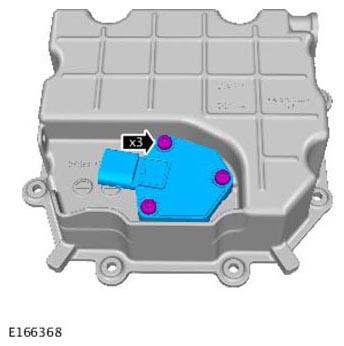

    G11309822

    Torque Specification: 12 Nm

  2. CAUTION:
    • Make sure that the mating faces are clean and free of foreign material.
    • Use only a plastic scraper when removing the sealing material.

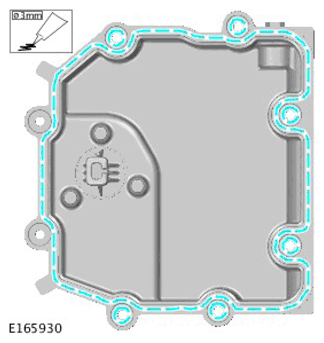

    G11309823
    • Apply RTV sealant (Loctite 5901G) in a 2-3mm diameter to the areas shown, and tighten the bolts within 7 minutes.
  3. NOTE: Tighten the bolts in the indicated sequence.
    Fig 1: Oil Pan Bolts Tightening Sequence
    G11309824Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque Specification: 12 Nm

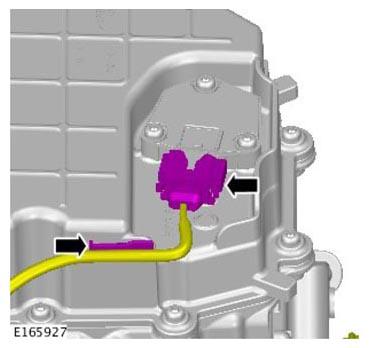

  4. G11309825
  5. Refer to: Engine Oil Draining and Filling (General Procedures).
  6. Connect the battery ground cable.

    Refer to: Battery Disconnect and Connect (General Procedures).
