Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: This procedure involves fuel handling. Be prepared for fuel spillage at all times and always observe fuel handling precautions. Failure to follow these instructions may result in personal injury.
CAUTION: Make sure that all openings are sealed. Use new blanking caps.
NOTE: Removal steps in this procedure may contain installation details.
  1. Disconnect the battery ground cable.

    Refer to: Battery Disconnect and Connect (General Procedures).

  2. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  3. Refer to: Engine Oil Vacuum Draining and Filling  (General Procedures).
  4. Refer to: Differential Draining and Filling (General Procedures).
  5. Refer to: Engine  (Removal).
  6. G11299783

    Install the special tool.

    Special Tool(s):  JLR-303-1304

  7. G11286497
  8. G11299785
  9. G11299786
  10. G11284916
  11. G11284917

    Install the special tool.

    Special Tool(s):  303-1438, 303-1437

  12. G11284918

    Special Tool(s):  303-1438, 303-1437

    Torque Specification: 25 Nm

  13. G11284919

    Support the special tool using a suitable vehicle stand.

    Special Tool(s):  303-1438, 303-1437

  14. CAUTION: The crankshaft pulley bolt must be removed clockwise. Failure to follow this instruction may result in damage to the crankshaft  .
    NOTE: The crankshaft pulley bolt will be very tight.
    G11284920

    Special Tool(s):  303-1438, 303-1437

  15. G11284918

    Special Tool(s):  303-1438, 303-1437

  16. G11284917

    Remove the special tools.

    Special Tool(s):  303-1438, 303-1437

  17. NOTE: Discard the bolt after removal.
    G11284923
  18. G11284924
  19. G11284925

    Install the special tool.

    Special Tool(s):  303-1440

  20. G11284926

    Install the special tool.

    Special Tool(s):  303-1441

  21. G11284927

    Install the special tool.

    Special Tool(s):  303-1439

    Torque Specification: 25 Nm

  22. G11284928

    Special Tool(s):  303-1439, 303-1440

  23. CAUTION: Discard the friction washer after removing the crankshaft pulley.
    NOTE: Make sure to clean the threads in the end of the crankshaft and that the crank nose is free of any foreign materials.
    G11284929
  24. G11284930

    Special Tool(s):  303-1439

  25. G11284931

    Special Tool(s):  303-1440, 303-1441

  26. CAUTION:
    • The bolts can only be used 3 times, mark the bolts with a center punch. If 2 punch marks are visible, discard the bolts.
    • Make sure that no components fall off during removal.
    NOTE: Make sure that the crankshaft is not rotated.
    G11286688

    Special Tool(s):  JLR-303-1304

  27. NOTE: Some components shown removed for clarity.
    G11284254

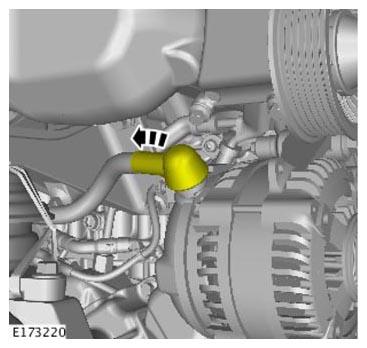

  28. G11299805
  29. G11299806
  30. G11299807
  31. G11299808
  32. G11285429
  33. G11299688
  34. G11285398
  35. CAUTION:
    • Be prepared to collect escaping fuel.
    • This fuel pipe can be re-used, inspect for signs of damage. Renew if necessary.
    • Make sure that all openings are sealed. Use new blanking caps.
    G11299812
  36. CAUTION:
    • Be prepared to collect escaping fuel.
    • Make sure that all openings are sealed. Use new blanking caps.
    G11285400
  37. G11299814
  38. G11299815
  39. G11299816
  40. NOTE: Some components shown removed for clarity.
    G11299817
  41. G11309870
  42. G11299819
  43. CAUTION:
    • Be prepared to collect escaping fuel.
    • Make sure that all openings are sealed. Use new blanking caps.
    G11299820
  44. G11299821
  45. CAUTION:
    • Be prepared to collect escaping fuel.
    • Make sure that all openings are sealed. Use new blanking caps.
    • Remove and discard the high-pressure fuel supply lines.
    G11285412
  46. G11299823

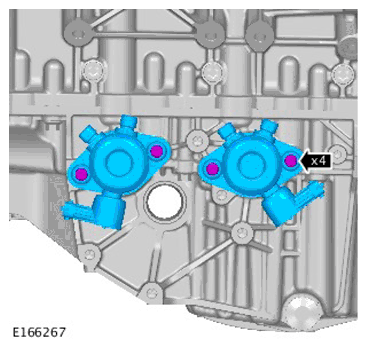

  47. CAUTION: Be prepared to collect escaping oil.
    G11299824

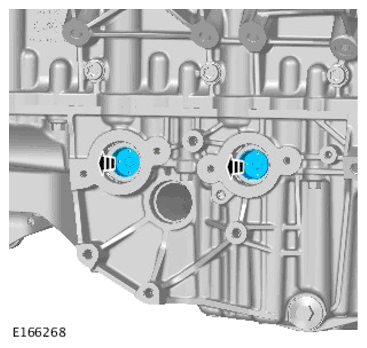

  48. CAUTION: Be prepared to collect escaping oil.
    G11299825
  49. G11310249
  50. G11299827
  51. G11299828
  52. G11299829
  53. G11299830
  54. CAUTION: Discard the component.
    G11299831
  55. G11299832
  56. G11299833
  57. CAUTION: Note the position of the bolts indicated prior to removal.
    G11299834

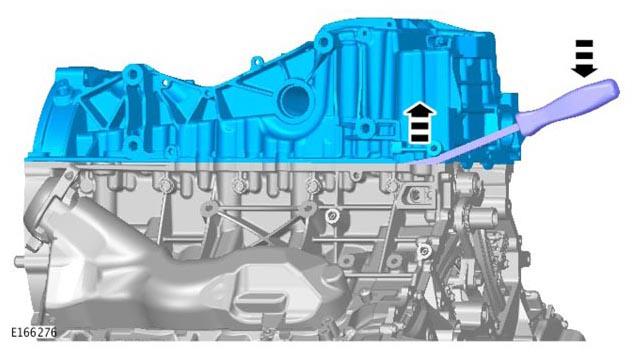

  58. NOTE: Make sure to use the aluminium lug provided on the oil pan extension to lever against.
    G11299835
  59. NOTE: Do not disassemble further if the component is removed for access only.
    G11299836
