Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Removal steps in this procedure may contain installation details.
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Some components shown removed for clarity.
  1. Disconnect the battery ground cable.

    Refer to: Battery Disconnect and Connect (General Procedures).

  2. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  3. Refer to: Cooling System Partial Draining, Filling and Bleeding (General Procedures).
  4. Refer to: Supercharger (Removal and Installation).

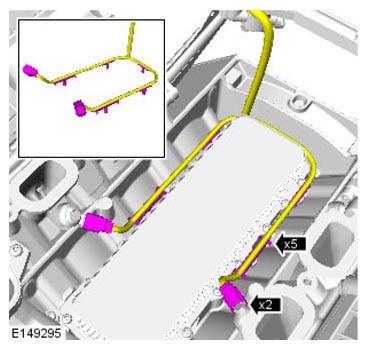

  5. G11309801
  6. CAUTION:
    • Be prepared to collect escaping oil.
    • Be prepared to collect escaping coolant.

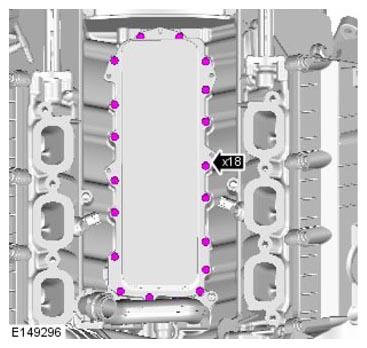

    G11309802
  7. CAUTION:
    • Make sure that these components are installed to the noted removal position.
    • Be prepared to collect escaping coolant.
    • Be prepared to collect escaping oil.
    NOTE: Discard the gasket.

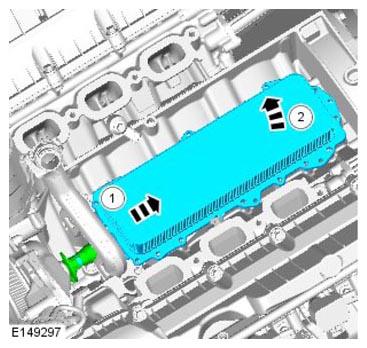

    G11309803
  8. CAUTION:
    • Make sure that these components are installed to the noted removal position.
    • Install new o-ring seals

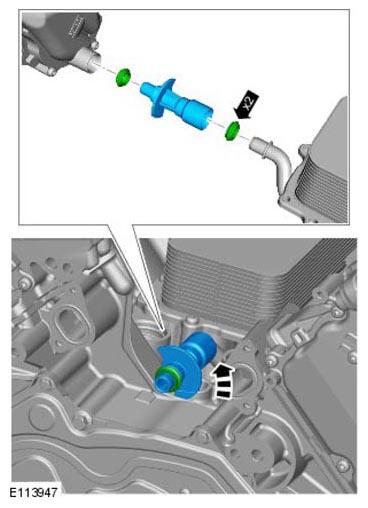

    G11309804
