Removal And Installation: Installation

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
  1. CAUTION: Make sure that the area around the component is clean and free of foreign material.

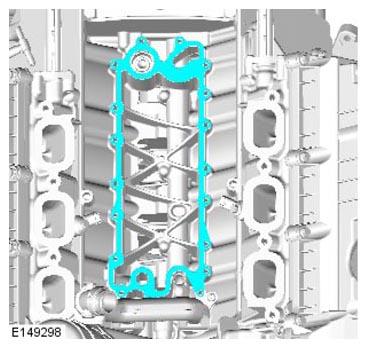

    NOTE: Install a new gasket.
    G11309805
  2. CAUTION:
    • Install all the bolts finger tight before final tightening.
    • Make sure that the area around the component is clean and free of foreign material.
    NOTE: Tighten the bolts in the indicated sequence.

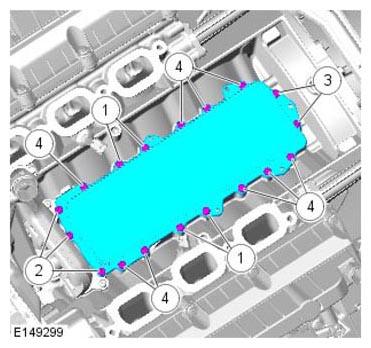

    Fig 1: Oil Cooler Bolts Tightening Sequence
    G11309806Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    To install, reverse the removal procedure.

    Torque Specification: 13 Nm
