Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Removal steps in this procedure may contain installation details.
  • Some illustrations may show the engine removed for clarity.
  1. Disconnect the battery ground cable.

    Refer to: Battery Disconnect and Connect (General Procedures).

  2. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  3. Refer to: Engine Oil Draining and Filling  (General Procedures).
  4. Refer to: Accessory Drive Belt (Removal and Installation).
  5. Refer to: Crankshaft Pulley  (Removal).
  6. G11310152
  7. G11310027
  8. G11285429
  9. CAUTION: Discard the component.

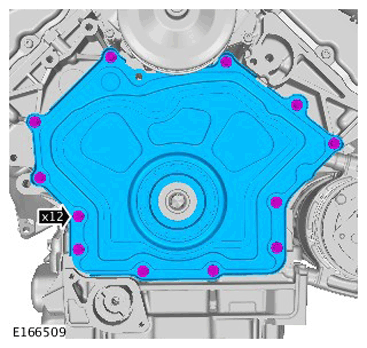

    G11287007
