Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Removal steps in this procedure may contain installation details.
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Some components shown removed for clarity.

All vehicles

  1. Refer to: Battery Disconnect and Connect (General Procedures).
  2. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  3. Refer to: LEFT CATALYTIC CONVERTER (Removal and Installation).

    4WD vehicles

  4. Refer to: LEFT ENGINE MOUNT - AWD  (Removal and Installation).

    All vehicles

  5. Refer to: Air Conditioning (A/C) Compressor - V6 S/C 3.0L Petrol (Removal and Installation).

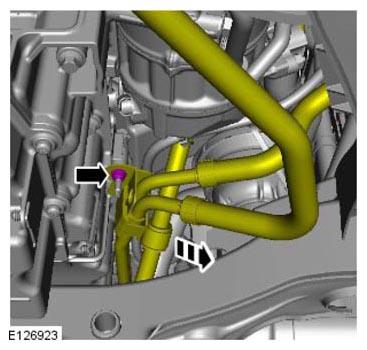

  6. G11309765

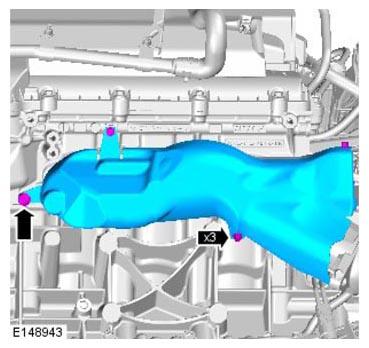

  7. G11309766

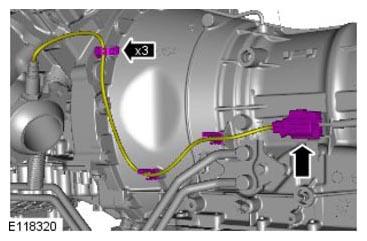

  8. G11309767
  9. CAUTION: Discard the bolts.
    NOTE:
    • Discard the gasket.
    • Make sure that the position of the spacers is noted before removal of the manifold.

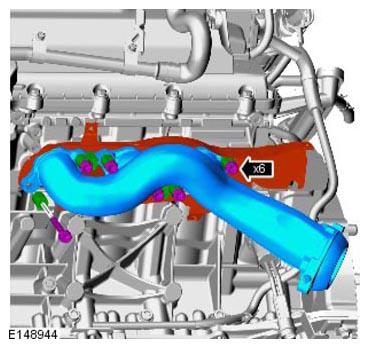

    G11309768
  10. NOTE: Do not disassemble further if the component is removed for access only.
    G11069547
