Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable.

    Refer to: Battery Disconnect and Connect (General Procedures).

  2. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.

  3. Refer to: Air Deflector (Removal and Installation).

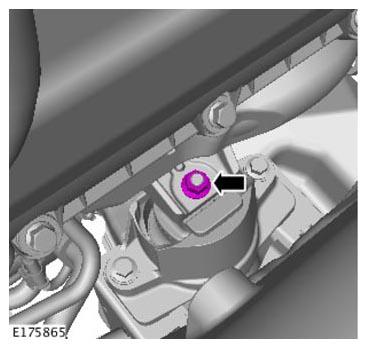

  4. G11309744

    Torque Specification: 60 Nm

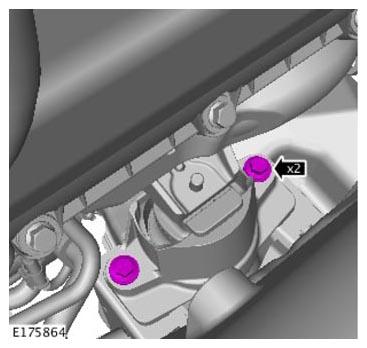

  5. G11309745

    Torque Specification: 48 Nm

  6. G11309746

    Torque Specification: 10 Nm

  7. Refer to: Air Deflector (Removal and Installation).

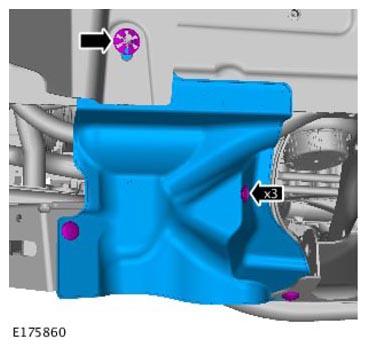

  8. G11309747

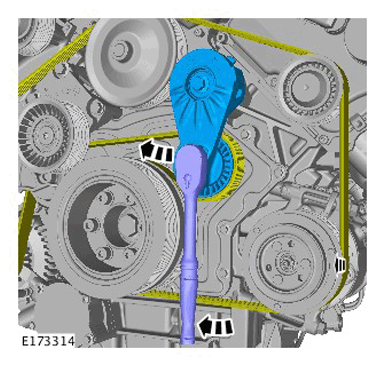

  9. G11286498

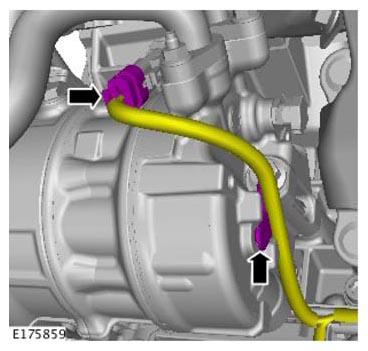

  10. G11309749
  11. CAUTION: Using a suitable tie strap, position and secure the component to one side.

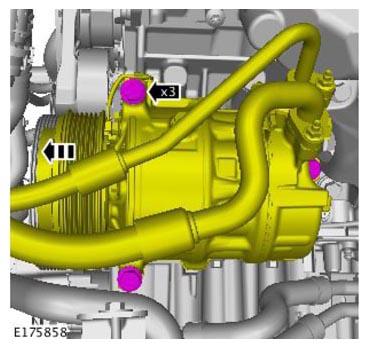

    G11309750

    Torque Specification: 25 Nm

  12. CAUTION: Use a wooden block to protect the oil pan when supporting the engine.
    G11285410

    Using a suitable hydraulic jack, support the engine.

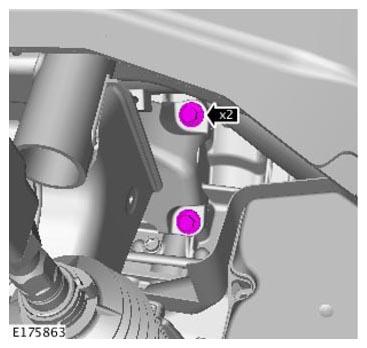

  13. G11309752

    Torque Specification: 48 Nm

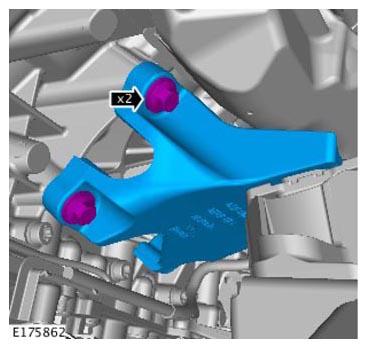

  14. G11309753

    Torque Specification: 48 Nm

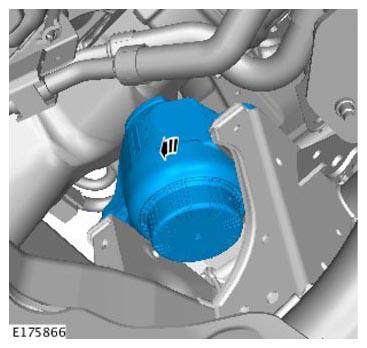

  15. G11309754
