Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Removal steps in this procedure may contain installation details.
  1. Refer to: Battery Disconnect and Connect (General Procedures).
  2. Refer to: Air Deflector (Removal and Installation).
  3. Refer to: Front Halfshaft (Removal and Installation).
  4. Refer to: Air Cleaner Outlet Pipe T-Connector (Removal and Installation).

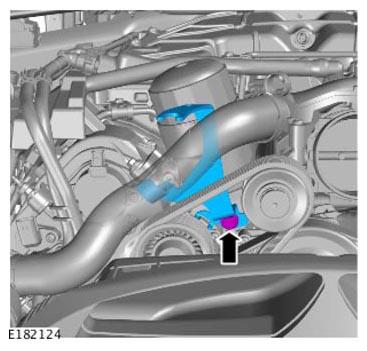

  5. G11310183

    Torque Specification: 24 Nm

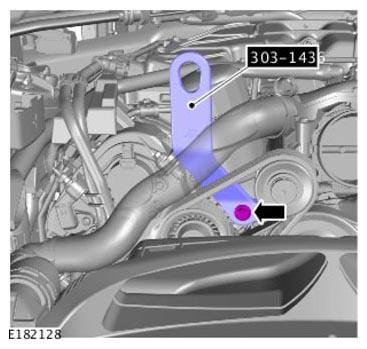

  6. G11310184

    Special Tool(s):  303-1436

    Torque Specification: 40 Nm

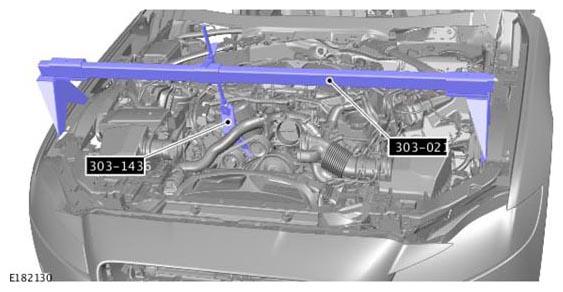

  7. G11310185

    Special Tool(s):  303-021, 303-1436

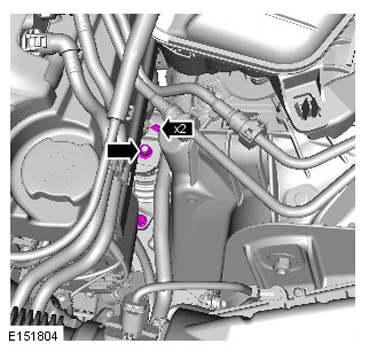

  8. G11286628

    Torque Specification: 48 Nm

  9. CAUTION: Care must be taken to avoid damaging the surrounding components.

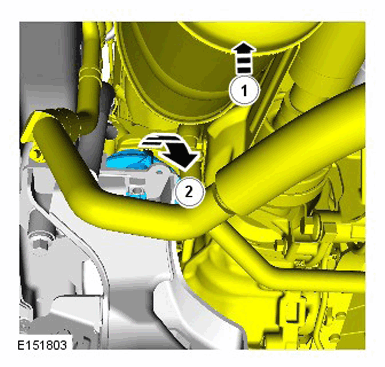

    G11286629
    • Raise the engine clear of its LH mount.
  10. NOTE: Do not disassemble further if the component is removed for access only.

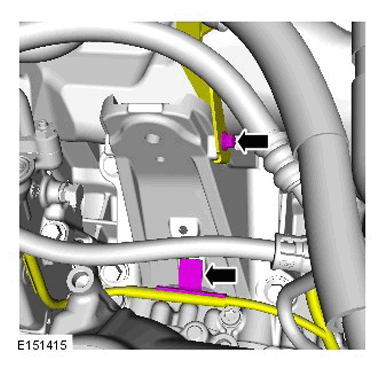

    G11286630

    Torque Specification: 10 Nm

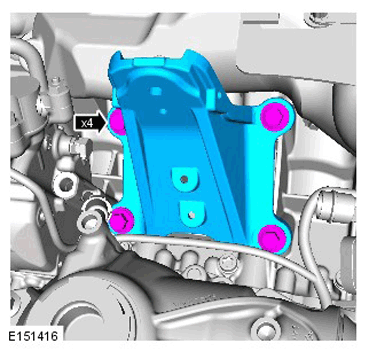

  11. G11286631

    Torque Specification: 40 Nm
