Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Some illustrations may show the engine removed for clarity.
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Removal steps in this procedure may contain installation details.
  1. Disconnect the battery ground cable.

    Refer to: Battery Disconnect and Connect (General Procedures).

  2. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  3. Refer to: OIL PAN - AWD (G1895988)  (Removal and Installation).
  4. G11286982
  5. G11287044

    Make sure that the crankshaft is in the timed position.

  6. CAUTION: Using a suitable tool, hold the oil pump gear when removing the center bolt.
    G11287051

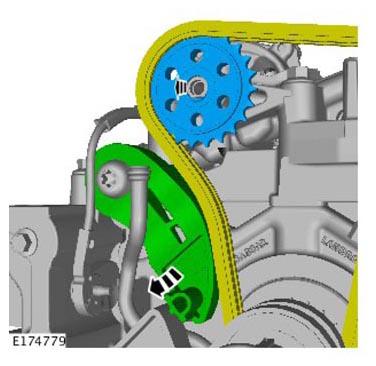

  7. G11299712
  8. CAUTION: Take extra care when removing the component, prevent damage to the fuel pump.
    G11299713
  9. G11299714
