Removal And Installation: Installation

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
  1. CAUTION: Make sure that the mating faces are clean and free of foreign material.
    G11285338

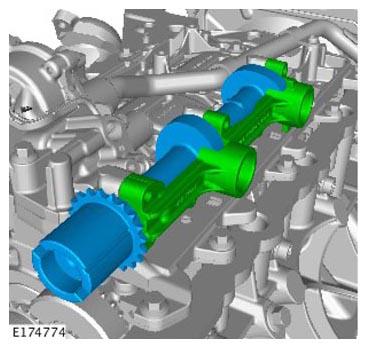

  2. CAUTION: Take extra care not to damage the mating faces.
    G11299714

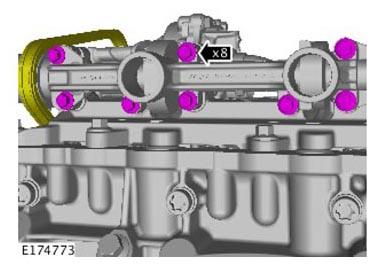

  3. G11299713

    Torque Specification: 12 Nm

  4. G11286987
  5. G11299719

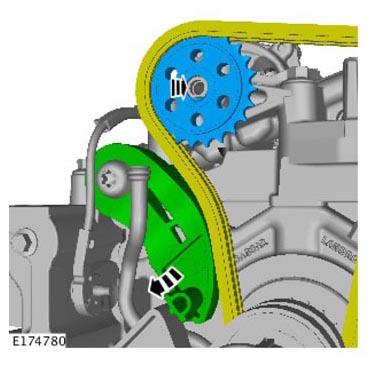

    Using a suitable tool, compress the timing chain tensioner.

  6. G11287051

    Torque Specification: 21 Nm

  7. G11286990
    • Install the lower timing chain making sure the coloured chain links align correctly with the fuel rail high-pressure fuel pumps camshaft, balance weight and crankshaft sprocket markings.
  8. G11286982

    Torque Specification: 11 Nm

  9. Refer to: Oil Pan - AWD - Installation .
  10. Refer to: Battery Disconnect and Connect (General Procedures).
