Removal And Installation: Removal
WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
- Removal steps in this procedure may contain installation details.
- Some components shown removed for clarity.
- Refer to: Automatic Transmission/Transaxle - AWD
(Removal and Installation).
Refer to: Automatic Transmission/Transaxle - Vehicles With: 8HP45 8-speed Automatic Transmission RWD (Removal and Installation).
-
CAUTION:

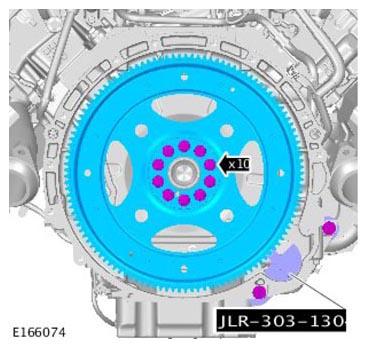

- The bolts can only be used 3 times, mark the bolts with a center punch. If 2 punch marks are visible, discard the bolts.
- Make sure that no components fall off during removal.
- Note the position of the bolts, prior to removal.
NOTE:- Make sure the crankshaft and flexplate mating faces are clean before installation.
- Make sure that the crankshaft is not rotated.
Install the special tool.
Special Tool(s): JLR-303-1304
