Removal And Installation: Installation

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
  1. CAUTION:
    • The bolts can only be used 3 times, mark the bolts with a center punch. If 2 punch marks are visible, discard the bolts.
    • Install all the bolts finger tight before final tightening.
    • Install the bolts in the noted position.

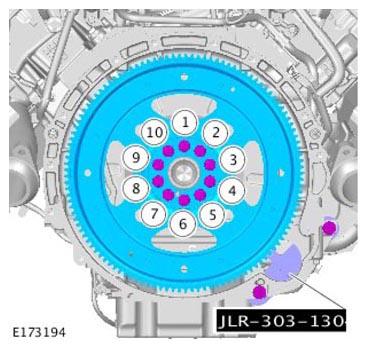

    Fig 1: Flexplate Tightening Sequence
    G11299708Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Special Tool(s):  JLR-303-1304

    Torque Specification:

    Stage 1: 45 Nm

    Stage 2: 90°

  2. Remove the special tool.

    Special Tool(s):  JLR-303-1304

  3. Refer to: Automatic Transmission/Transaxle - AWD (Installation).

    Refer to: Automatic Transmission/Transaxle - Vehicles With: 8HP45 8-speed Automatic Transmission RWD (Installation).
