Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Be prepared to collect escaping coolant.
  1. Refer to: Petrol and Petrol-Ethanol Fuel Systems Health and Safety Precautions (Description and Operation).
  2. Refer to: Fuel System Pressure Release (General Procedures).
  3. Refer to: Battery Disconnect and Connect (General Procedures).
  4. Refer to: Hood (Removal and Installation).
  5. Refer to: Cooling System Partial Draining, Filling and Bleeding (General Procedures).
  6. Refer to: Cooling Fan Motor and Shroud (Removal and Installation).

  7. Refer to: Automatic Transmission/Transaxle - Vehicles With: 8HP45 8-speed Automatic Transmission RWD (Removal and Installation).

  8. G11310341
  9. G11310342
  10. G11310343
  11. G11310344
  12. G11310345
  13. G11310346
  14. WARNING: Be prepared to collect escaping fuel.
    G11310347
  15. G11310348
  16. G11310349
  17. G11310350
  18. G11310351
  19. CAUTION: Do not use excessive force to remove the component.
    G11310352
  20. G11310353
  21. G11310354
  22. G11310355
  23. G11310356
  24. G11310357
  25. G11310358

    Install the Special Tool(s): 303-1436

    Torque Specification: 25 Nm

  26. G11310359

    Install the Special Tool(s): 303-1435

    Torque Specification: 25 Nm

  27. NOTE: If equipped
    G11309746
  28. CAUTION: Discard the nut.
    G11310361
  29. CAUTION: Discard the nut.
    G11310362
  30. CAUTION: Take care not to damage surrounding components.
    G11310363

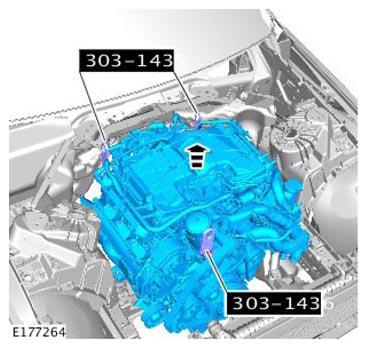

    Install the Special Tool(s): 303-1435, 303-1436 General Equipment: Hydraulic jib crane
