Removal And Installation: Installation

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Some illustrations may show the engine removed for clarity.
  • Be prepared to collect escaping coolant.

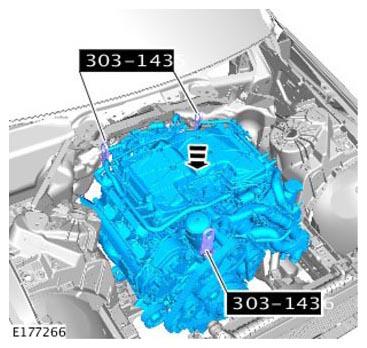

  1. CAUTION: Take care not to damage surrounding components.
    G11310463

    General Equipment:  Hydraulic jib crane

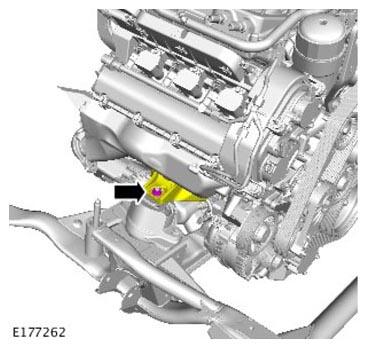

  2. CAUTION: Install a new nut.
    G11310362

    Torque Specification: 60 Nm

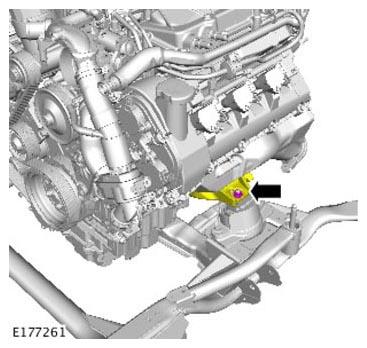

  3. CAUTION: Install a new nut.
    G11310361

    Torque Specification: 60 Nm

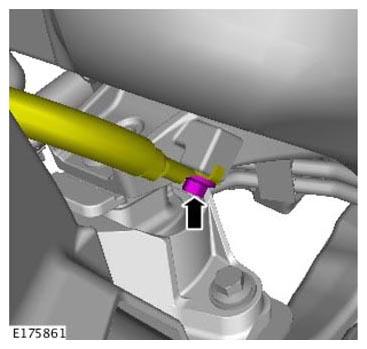

  4. NOTE: If equipped
    G11309746

    Torque Specification: 10 Nm

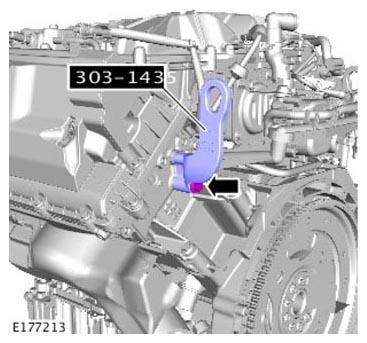

  5. G11310359

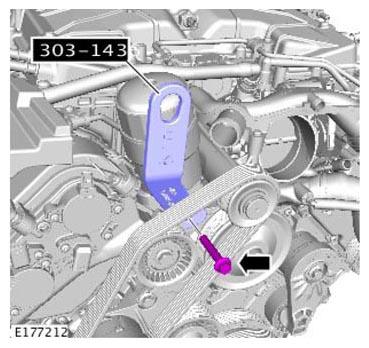

  6. G11310358

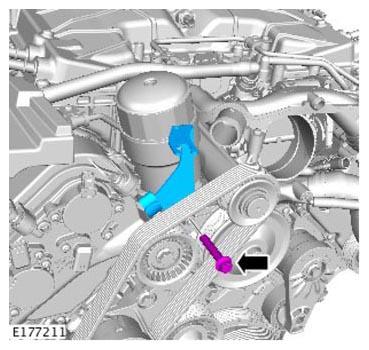

  7. G11310357

    Torque Specification: 25 Nm

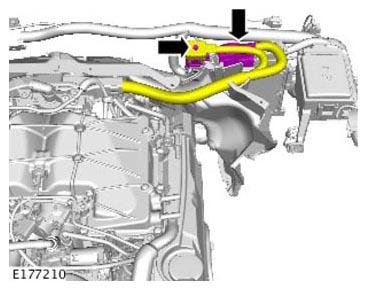

  8. G11310356

    Torque Specification: 6 Nm

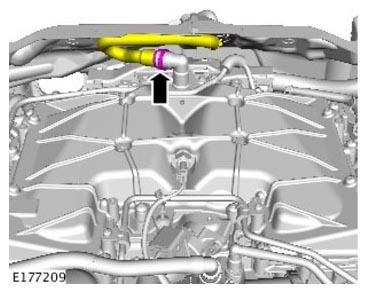

  9. G11310355

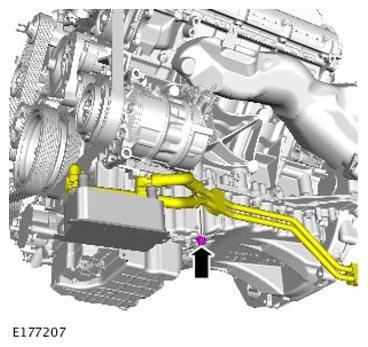

  10. G11310354

    Torque Specification: 10 Nm

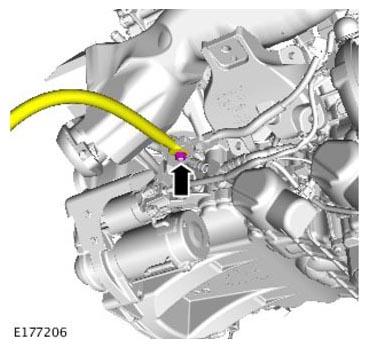

  11. G11310353

    Torque Specification: 12 Nm

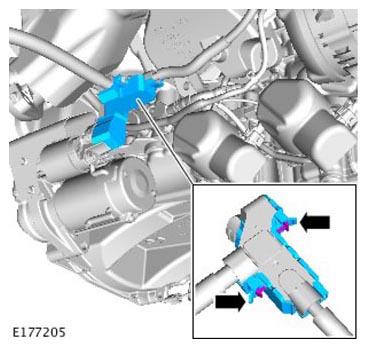

  12. G11310352

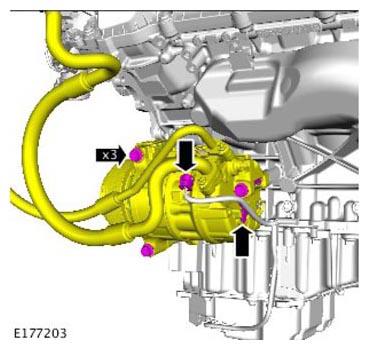

  13. G11310351

    Torque Specification: 25 Nm

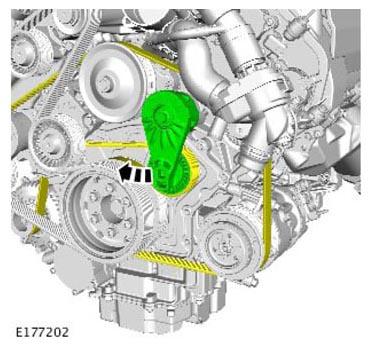

  14. G11310350

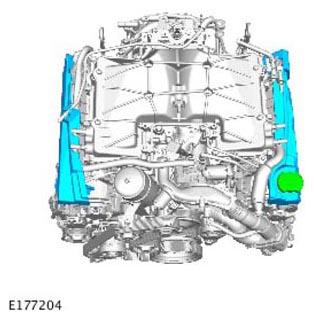

  15. G11310349

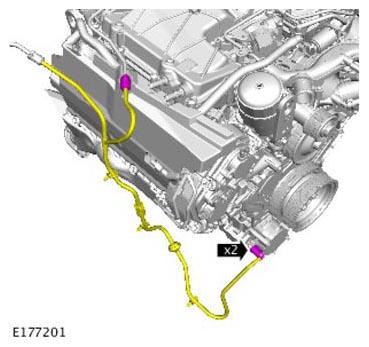

  16. G11310348

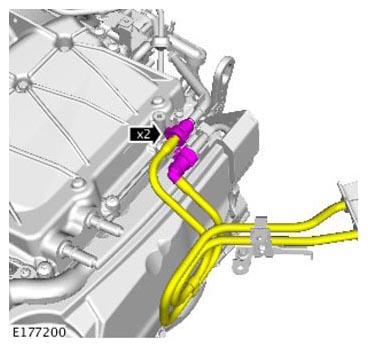

  17. WARNING: Be prepared to collect escaping fuel.
    G11310347

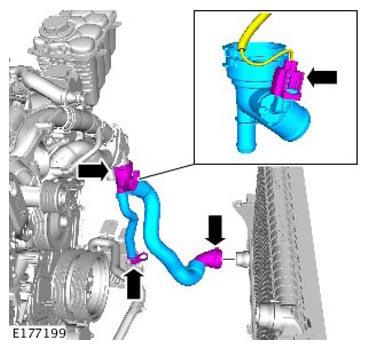

  18. G11310346

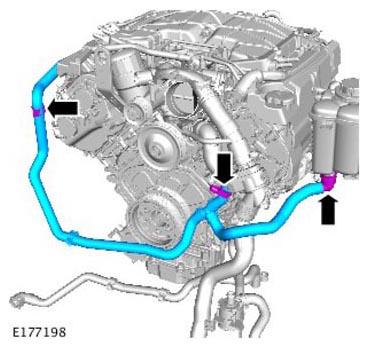

  19. G11310345

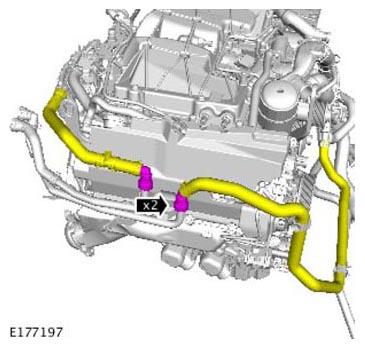

  20. G11310344

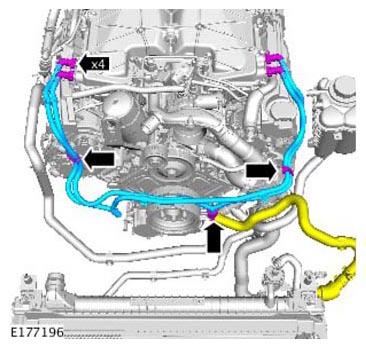

  21. G11310343

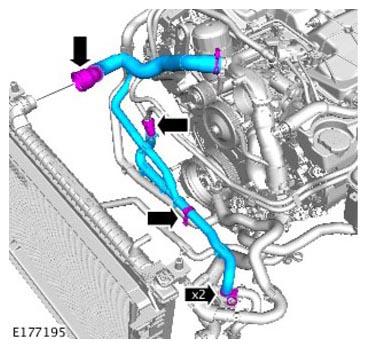

  22. G11310342

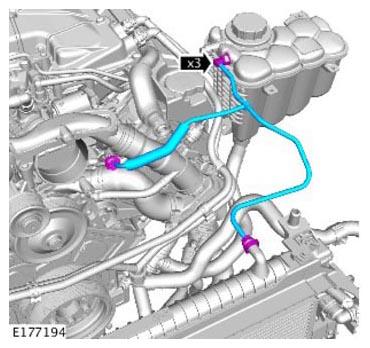

  23. G11310341
  24. Refer to: Transmission - V6 S/C 3.0L Petrol (Installation).
  25. Refer to: Cooling Fan Motor and Shroud (Installation).
  26. Refer to: Cooling System Partial Draining, Filling and Bleeding (General Procedures).
  27. Refer to: Battery Disconnect and Connect (General Procedures).
  28. Refer to: Hood (Installation).
