Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. Disconnect the battery ground cable.

    Refer to: Battery Disconnect and Connect (General Procedures).

  3. Refer to: Petrol and Petrol-Ethanol Fuel Systems Health and Safety Precautions .
  4. Remove the engine assembly.

    Refer to: Engine  (Removal).

  5. Mount the engine to an engine stand.
  6. CAUTION:
    • Be prepared to collect escaping oil.
    • Allow at least 10 minutes for the engine oil to drain.

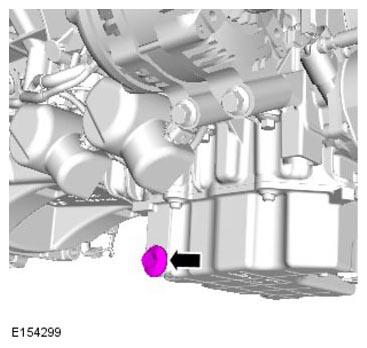

    G11299313
  7. G11299313

    Install the original oil pan plug

    Torque Specification: 23 Nm

  8. CAUTION: Note the installed position of the component(s) prior to removal.
    G11310395
  9. G11293739
  10. G11310397
  11. NOTE: Note the fitted position of the accessory drive belt.
    G11310398
  12. G11310399

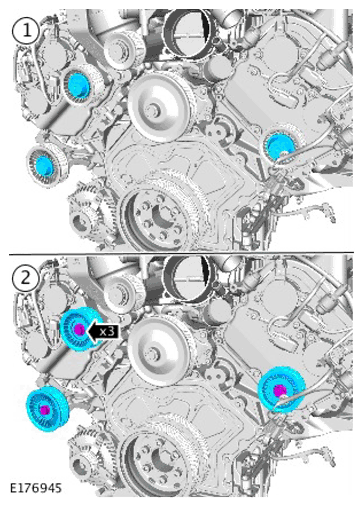

  13. NOTE: Note the position of the components prior to removal.
    G11310400
  14. G11310401
  15. G11310402
  16. G11310403
  17. G11310404
  18. G11310405
  19. G11310406
  20. G11310407
  21. CAUTION: Remove and discard the O-ring seals.
    NOTE: Take extra care when releasing the clips.
    G11310408
  22. CAUTION:
    • Take extra care when removing the throttle body, failure to follow this instruction may result in damage to the manifold absolute pressure and temperature (MAPT) sensor.
    • Do not attempt to clean the throttle body bore, build up of deposits reduces air leakage past the throttle plate at the fully closed position.
    G11310409
  23. NOTE: Discard the gasket.
    G11310410
  24. NOTE: Remove and discard the O-ring seals.
    G11310411
  25. G11310412
  26. G11310413
  27. G11310414
  28. G11310415
  29. CAUTION:
    • Be prepared to collect escaping fluids.
    • Make sure that all openings are sealed. Use new blanking caps.
    G11310416
  30. WARNING:
    • Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel related components. Highly flammable mixtures are always present and may ignite. Failure to follow these instructions may result in personal injury.
    • Be prepared to collect escaping fluids.
    CAUTION:
    • Make sure that the fuel line union does not rotate.
    • Make sure that all openings are sealed. Use new blanking caps.

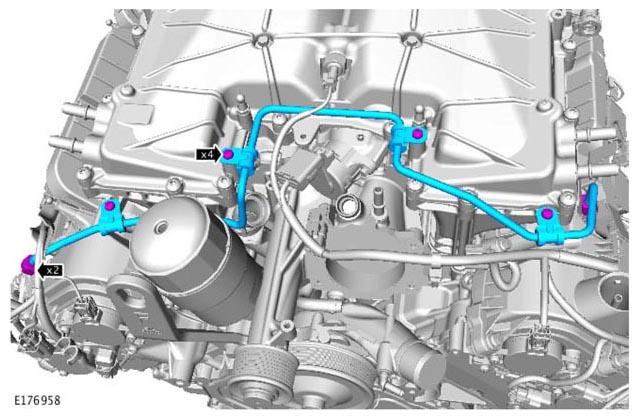

    G11310417
  31. NOTE: The gasket is to be reused unless damaged.

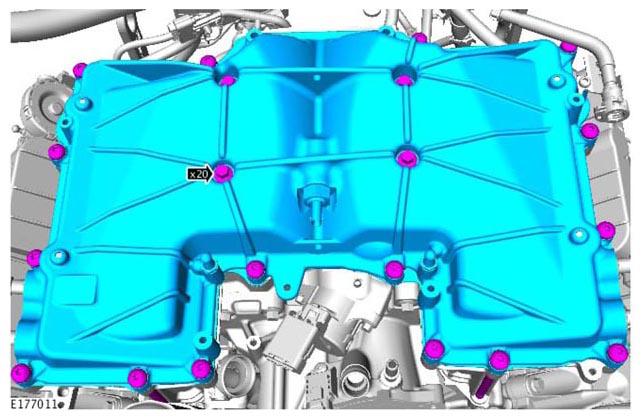

    G11310418

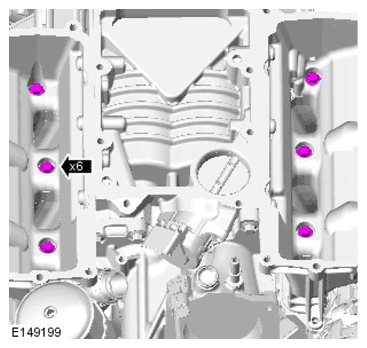

  32. G11293165
  33. CAUTION: Remove and discard the gaskets.

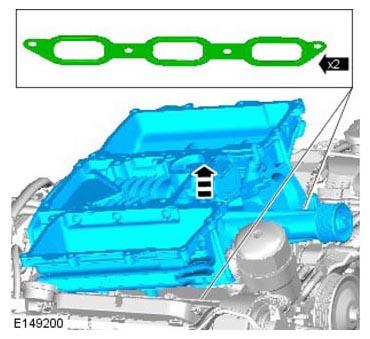

    G11293166
  34. G11293407
  35. G11293408
  36. G11293409

    Special Tool(s):  303-1450

  37. CAUTION: Make a note of the fuel injector clamp alignment to the fuel rail prior to removal.
    G11293410
  38. CAUTION:
    • Make sure that the special tool is located correctly to the fuel injector prior to removing the fuel injector.
    • Make sure that the special tool is held square to the fuel injector during removal.
    • Make sure that all open ports are covered to prevent any foreign material ingress.
    G11310425

    Special Tool(s):  310-197

  39. CAUTION:
    • If the fuel injector is being removed without a new component being installed, the fuel injector clamp must remain with the fuel injector it is removed with.
    • If new fuel injectors are installed, a new injector clamp must be installed.
    G11288042
  40. CAUTION:
    • Do not use a knife to remove the Teflon seal as damage could occur to the fuel injector.
    • Do not cut the Teflon seal to deep as damage could occur to the fuel injector.
    • Pinch the Teflon seal to allow the tool to cut the Teflon seal without damaging the fuel injector.
    • Remove and discard the seals.
    G11288043
  41. CAUTION:
    • Do not use any sharp tools to remove the O-ring seal as damage could occur to the fuel injector.
    • Remove and discard the O-ring seals.
    G11288044
  42. G11310428
  43. G11310429
  44. G11310430
  45. G11310431
  46. G11293409

    Special Tool(s):  303-1450

  47. CAUTION:
    • Be prepared to collect escaping fluids.
    • Make sure that all openings are sealed. Use new blanking caps.
    G11285400
  48. CAUTION: Make a note of the fuel injector clamp alignment to the fuel rail prior to removal.

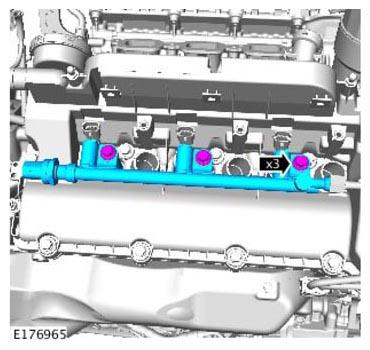

    G11310434
  49. CAUTION:
    • Make sure that the special tool is located correctly to the fuel injector prior to removing the fuel injector.
    • Make sure that the special tool is held square to the fuel injector during removal.
    • Make sure that all open ports are covered to prevent any foreign material ingress.
    G11288078

    Special Tool(s):  310-197

  50. CAUTION:
    • If the fuel injector is being removed without a new component being installed, the fuel injector clamp must remain with the fuel injector it is removed with.
    • If new fuel injectors are installed, a new injector clamp must be installed.
    G11288042
  51. CAUTION:
    • Do not use a knife to remove the Teflon seal as damage could occur to the fuel injector.
    • Do not cut the Teflon seal to deep as damage could occur to the fuel injector.
    • Pinch the Teflon seal to allow the tool to cut the Teflon seal without damaging the fuel injector.
    G11288043
  52. CAUTION: Do not use any sharp tools to remove the O-ring seal as damage could occur to the fuel injector.
    G11288044
  53. G11299947
  54. G11299815
  55. G11299816
  56. G11299950
  57. G11299951
  58. CAUTION:
    • Make sure that the area around the component is clean and free of foreign material.
    • Be prepared to collect escaping fuel.
    NOTE: Make sure that all openings are sealed. Use new blanking caps.
    G11299953
  59. G11299821
  60. CAUTION:
    • Make sure that the area around the component is clean and free of foreign material.
    • Be prepared to collect escaping fuel.
    • Make sure that all openings are sealed. Use new blanking caps.
    • Remove and discard the high-pressure fuel supply lines.
    G11285412
  61. G11286656

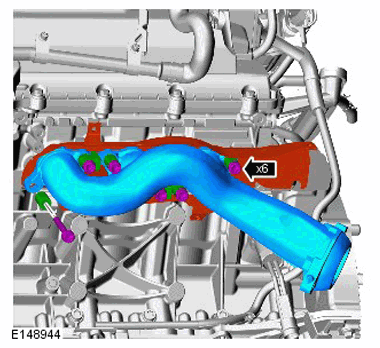

  62. CAUTION: Discard the bolts.
    NOTE:
    • Discard the gasket.
    • Make sure that the position of the spacers is noted before removal of the manifold.
    G11286658
  63. G11299689
  64. G11299690

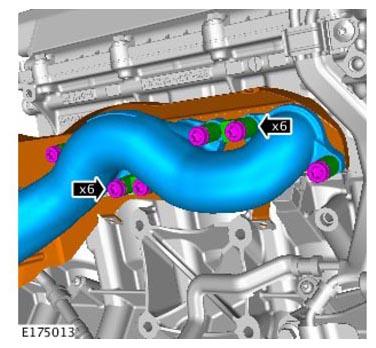

  65. CAUTION: Discard the bolts.
    NOTE:
    • Discard the gasket.
    • Make sure that the position of the spacers is noted before removal of the manifold.
    G11299691

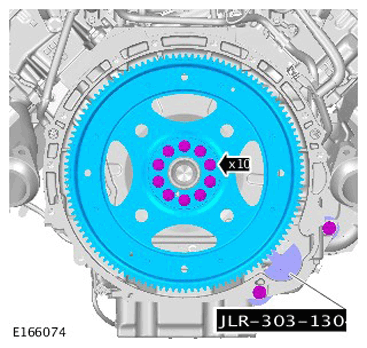

  66. CAUTION: The bolts can only be used 3 times, mark the bolts with a center punch. If 2 punch marks are visible, discard the bolts.
    G11286688
    • Install the special tool.
    • Remove the flexplate.
    • Remove the special tool.

      Special Tool(s):  JLR-303-1304

  67. G11299956
  68. CAUTION: Be prepared to collect escaping fuel.
    G11299957
  69. CAUTION: Be prepared to collect escaping fluids.
    G11299958

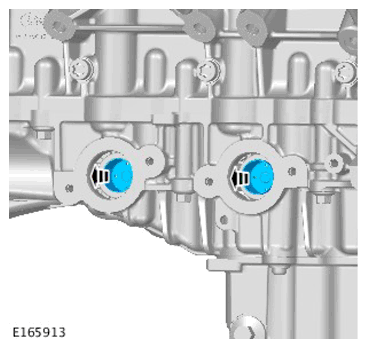

  70. G11310455
  71. G11310456
  72. G11310457
  73. G11310458
  74. G11310459
  75. G11310460
    • Remove the special tool.
    • Special Tool(s):  303-1436
  76. G11310461
    • Remove the special tool.
    • Special Tool(s):  303-1435
  77. NOTE: Remove and discard the O-ring seals.
    G11310462
