Removal And Installation: Installation

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: For special tools refer to the Special Tool(s)  chart.
NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

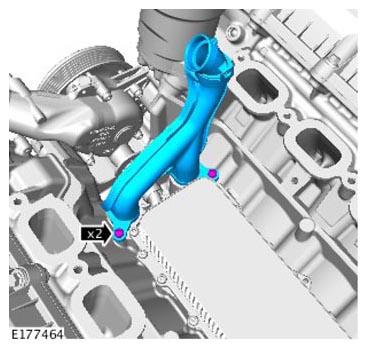

  1. NOTE: Install new O-ring seals.
    G11310462

    Torque Specification: 10 Nm

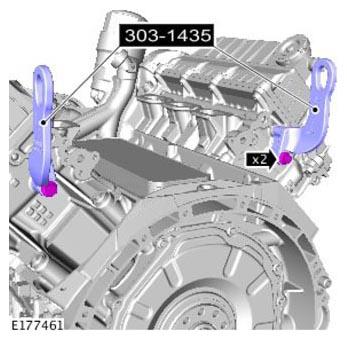

  2. G11310461
    • Install the special tool.
    • Torque Specification: 25 Nm
    • Special Tool(s):  303-1435

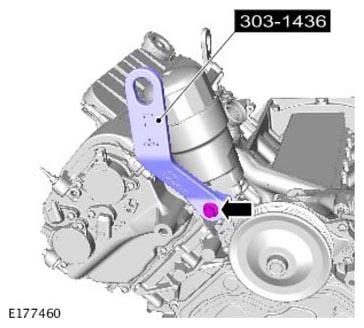

  3. G11310460
    • Install the special tool.
    • Torque Specification: 25 Nm
    • Special Tool(s):  303-1436

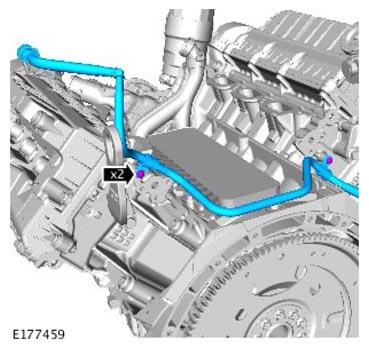

  4. G11310459

    Torque Specification: 10 Nm

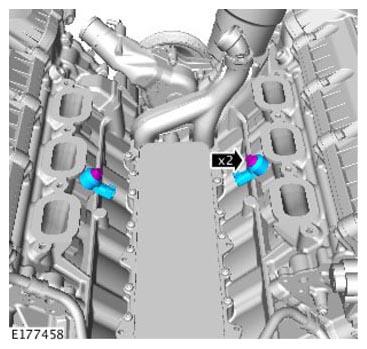

  5. G11310458

    Torque Specification: 20 Nm

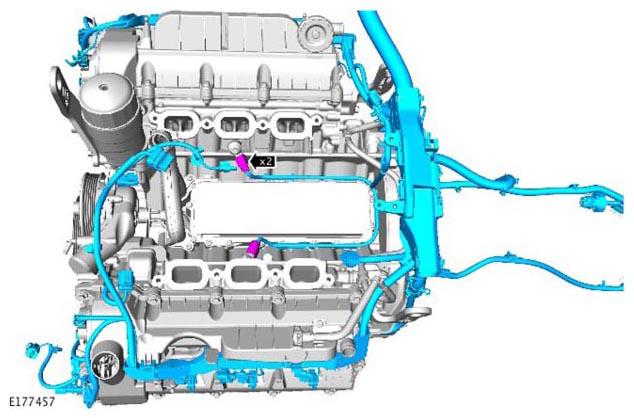

  6. G11310457

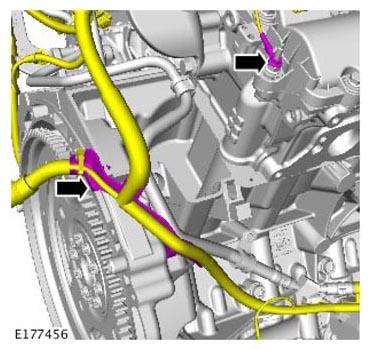

  7. G11310456

    Torque Specification: 6 Nm

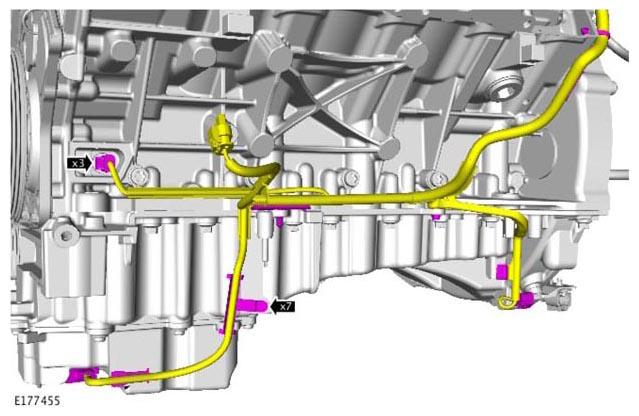

  8. G11310455

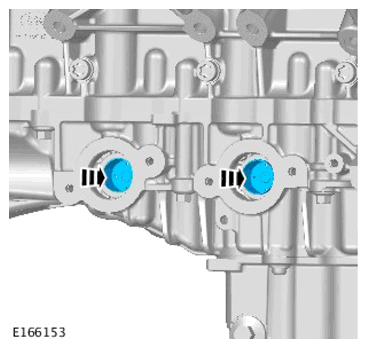

  9. NOTE: Lubricate the fuel rail high-pressure fuel pump buckets with clean engine oil.
    G11299987

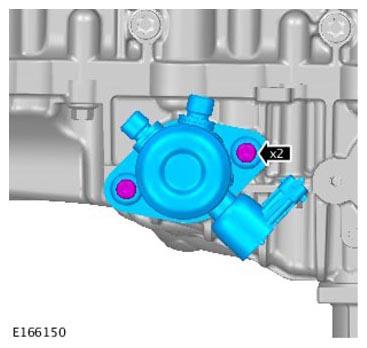

  10. CAUTION: Tighten the Torx screws a turn at a time until the correct torque is achieved.
    NOTE: Lubricate the fuel rail high-pressure fuel pump O-ring seal with clean engine oil.
    G11299988

    Torque Specification: 11 Nm

  11. CAUTION: Tighten the Torx screws a turn at a time until the correct torque is achieved.
    NOTE: Lubricate the fuel rail high-pressure fuel pump O-ring seal with clean engine oil.

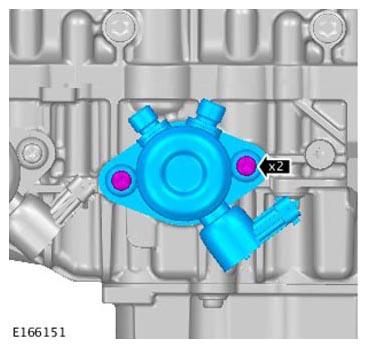

    G11299989

    Torque Specification: 11 Nm

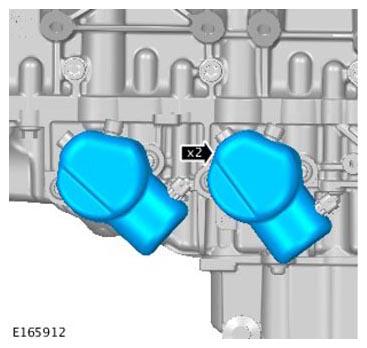

  12. G11299956
  13. CAUTION:
    • Install all the bolts finger tight before final tightening.
    • The bolts can only be used 3 times, mark the bolts with a center punch. If 2 punch marks are visible, discard the bolts.
    • Tighten the bolts in the sequence shown.
    NOTE:
    • Make sure that the crankshaft is not rotated.
    • Make sure the crankshaft and flexplate mating faces are clean before installation.
    Fig 1: Flexplate Tightening Sequence
    G11299708Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the special tool.
    • Torque Specifications:

      Stage 1: 45 Nm

      Stage 2: 90°

    • Remove the special tool.
    • Special Tool(s):  JLR-303-1304

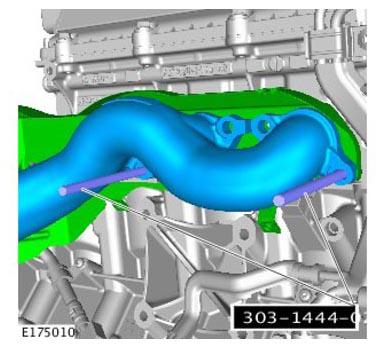

  14. CAUTION: Install a new gasket.
    G11299695
    • Install the special tool.
    • Special Tool(s):  303-1444-02

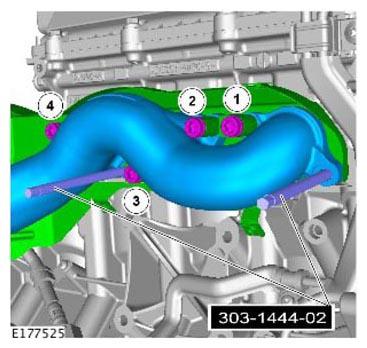

  15. CAUTION: Make sure that new bolts are installed.
    NOTE: Install the spacers in the noted position.
    G11310534

    Torque Specification: 10 Nm

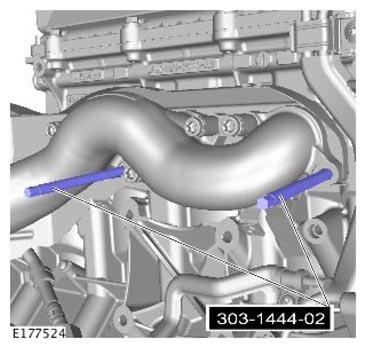

  16. G11310535

    Remove the special tool.

  17. CAUTION: Make sure that new bolts are installed.
    NOTE: Install the spacers in the noted position.

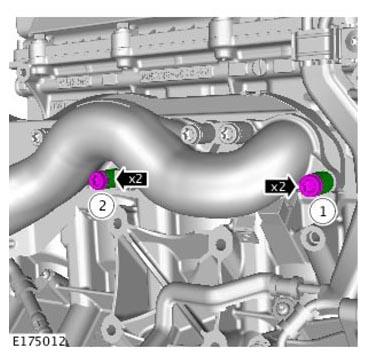

    G11299699

    Torque Specification: 10 Nm

  18. CAUTION: Tighten the bolts in the sequence shown.

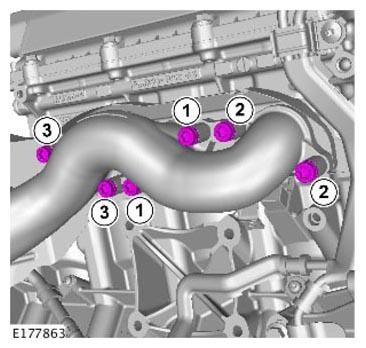

    Fig 2: Right Side Exhaust Manifold Bolts Tightening Sequence
    G11310537Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque Specification: 18 Nm

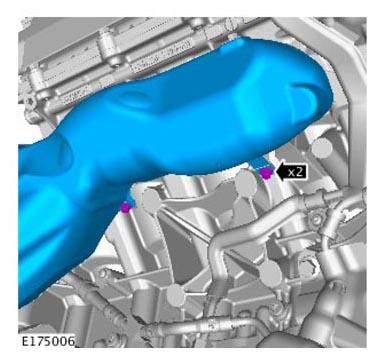

  19. G11299689

    Torque Specification: 3 Nm

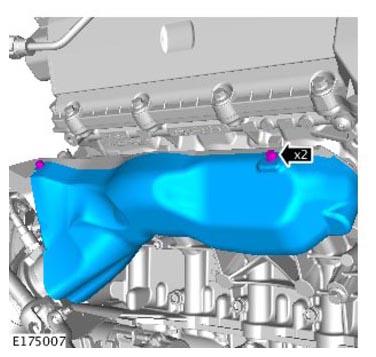

  20. G11299690

    Torque Specification: 3 Nm

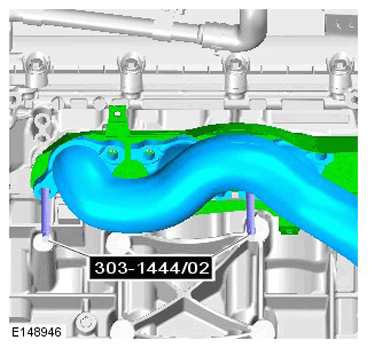

  21. CAUTION: Install a new gasket.
    G11286662
    • Install the special tool.
    • Special Tool(s):  303-1444-02

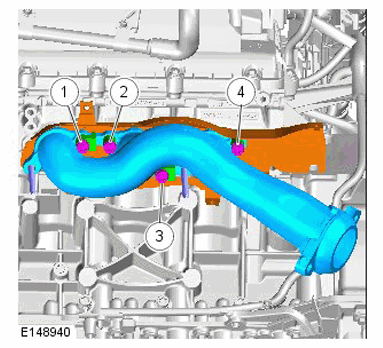

  22. CAUTION: Make sure that new bolts are installed.
    NOTE: Install the spacers in the noted position.
    G11286663

    Torque Specification: 10 Nm

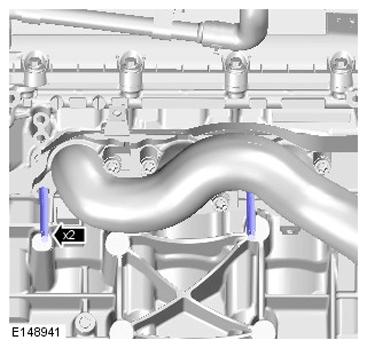

  23. G11286664

    Remove the special tool.

    Special Tool(s):  303-1444-02

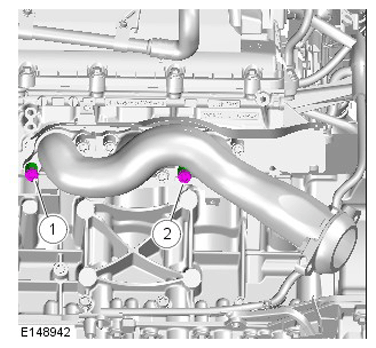

  24. CAUTION: Make sure that new bolts are installed.
    NOTE: Install the spacers in the noted position.
    G11286665

    Torque Specification: 10 Nm

  25. CAUTION: Tighten the bolts in the sequence shown.

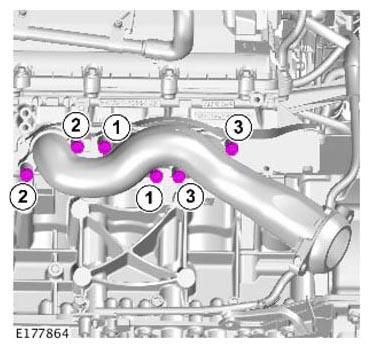

    Fig 3: Left Side Exhaust Manifold Bolts Tightening Sequence
    G11310544Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque Specification: 18 Nm

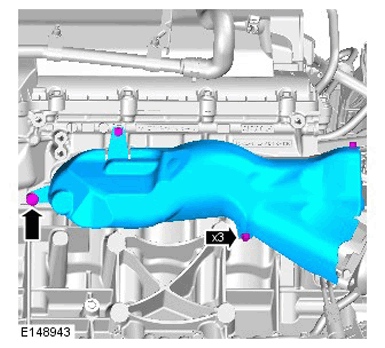

  26. G11286656

    Torque Specification: 3 Nm

  27. CAUTION:
    • Install new high-pressure fuel supply lines.
    • Lubricate only the union threads with clean engine oil.
    NOTE:
    • Remove and discard the blanking caps.
    • Install the bolt and unions fully finger tight before final tightening.
    Fig 4: Fuel Line Bolts Tightening Sequence
    G11285491Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque Specifications:

    Unions (1) 21 Nm

    M6 (2) 11 Nm

    M8 (3) 25 Nm

  28. G11299861

    Torque Specification: 21 Nm

  29. NOTE: Remove and discard the blanking caps.
    G11299953

    Torque Specification: 21 Nm

  30. G11299821

    Torque Specification: 11 Nm

  31. G11299996

    Torque Specification: 21 Nm

  32. G11299951

    Torque Specifications:

    M10 29 Nm

    M6 11 Nm

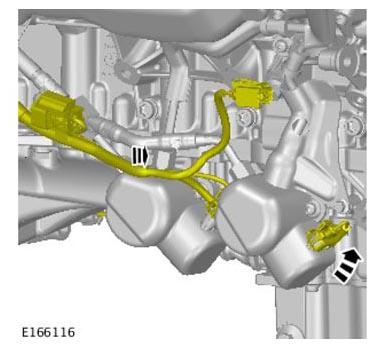

  33. G11299999
  34. G11299816
  35. G11299815
  36. G11299947
  37. G11288044
  38. G11288046

    Special Tool(s):  310-198

  39. G11288047

    Special Tool(s):  310-199

  40. CAUTION: If the original fuel injector is being installed, the original fuel injector clamp must installed with the fuel injector it was removed with.
    G11288042

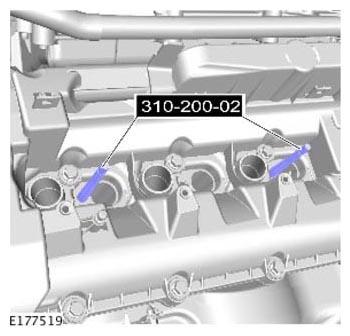

  41. NOTE: Left illustration shown, right is similar.
    G11310560

    Special Tool(s):  310-200-02

  42. CAUTION:
    • Make sure that the area around the open fuel injector ports are clean and free of foreign material and lubricant prior to installing the fuel injector.
    • When installing the fuel injector(s), make sure that the Teflon seal is clean and free of foreign material and lubricant.
    NOTE: Left illustration shown, right is similar.
    G11293420
  43. CAUTION:
    • If new fuel injectors are installed, a new injector clamp must be installed.
    • Make sure that the fuel injector is aligned and installed into the fuel rail correctly, as noted in the removal step.
    • Tighten the fuel rail retaining bolts a turn at a time until the correct torque is achieved.
    NOTE:
    • Lubricate the fuel injector O-ring seals with clean engine oil.
    • Left illustration shown, right is similar.
    G11293421

    Torque Specification: 20 Nm

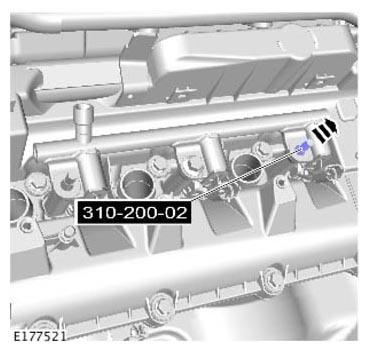

  44. NOTE: Left illustration shown, right is similar.
    G11310563

    Special Tool(s):  310-200-02

  45. NOTE: Left illustration shown, right is similar.
    G11293423

    Torque Specification: 20 Nm

  46. NOTE: Left illustration shown, right is similar.

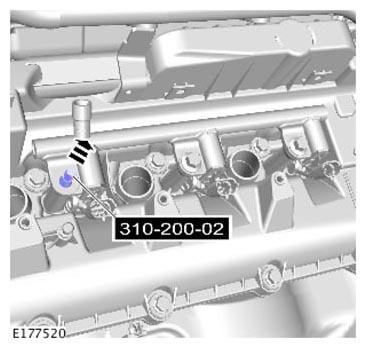

    G11310565

    Special Tool(s):  310-200-02

  47. NOTE: Left illustration shown, right is similar.
    G11293425

    Torque Specification: 20 Nm

  48. NOTE:
    • Tighten the bolts in the indicated sequence.
    • Left illustration shown, right is similar.
    Fig 5: Left Side Fuel Rail Bolts Tightening Sequence
    G11293426Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Torque Specifications:

    Bolt 2 30 Nm

    Bolt 3 30 Nm

    Bolt 1 30 Nm

  49. NOTE:
    • Install the nut and unions finger tight before final tightening.
    • :Remove and discard the blanking caps.
    G11285400

    Torque Specifications:

    Unions 21 Nm

    M5 6 Nm

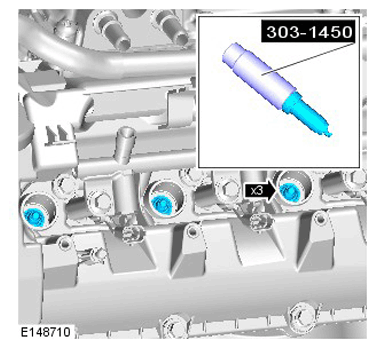

  50. G11293409

    Special Tool(s):  303-1450

  51. CAUTION: Make sure that the spark plugs are aligned correctly.
    NOTE: Left illustration shown, right is similar.
    G11310570

    Check that the vertical section of the T mark located on top of the spark plug, is aligned to no more than 45 degrees either side from the adjoining fuel injector.

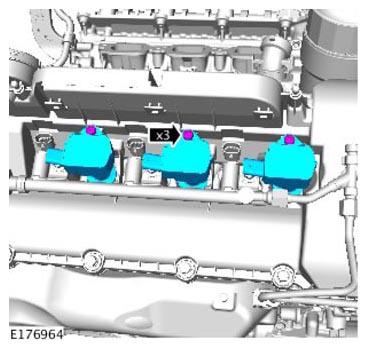

  52. G11310431

    Torque Specification: 8 Nm

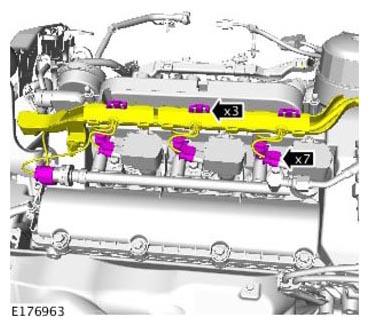

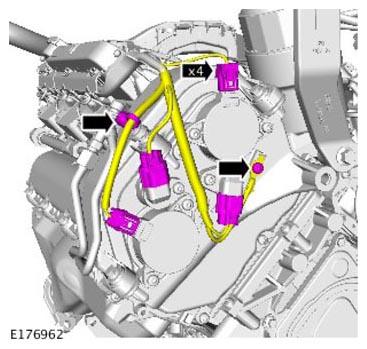

  53. G11310430
  54. G11310429

    Torque Specification: 10 Nm

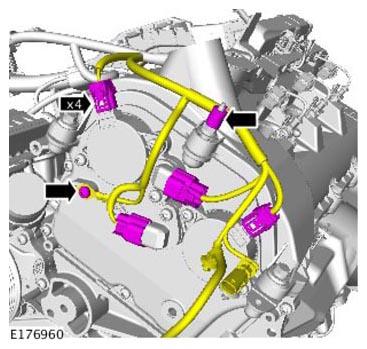

  55. G11310428

    Torque Specification: 10 Nm

  56. NOTE: Install new O-ring seals.
    G11288044
  57. NOTE: Install new seals.
    G11288046

    Special Tool(s):  310-198

  58. G11288047

    Special Tool(s):  310-199

  59. CAUTION: If the original fuel injector is being installed, the original fuel injector clamp must installed with the fuel injector it was removed with.
    G11288042
  60. CAUTION: If a new cylinder head has been installed then the special tool 310-200-02 without the thread must be used to install the fuel rail.
    G11310560

    Special Tool(s):  310-200-02

  61. CAUTION:
    • Make sure that the area around the open fuel injector ports are clean and free of foreign material and lubricant prior to installing the fuel injector.
    • When installing the fuel injector(s), make sure that the Teflon seal is clean and free of foreign material and lubricant.

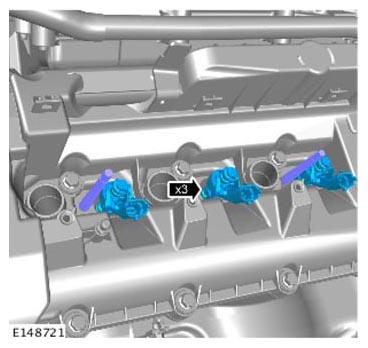

    G11310580
  62. CAUTION:
    • If new fuel injectors are installed, a new injector clamp must be installed.
    • Make sure that the fuel injector is aligned and installed into the fuel rail correctly, as noted in the removal step.
    • Tighten the fuel rail retaining bolts a turn at a time until the correct torque is achieved.
    NOTE: Lubricate the fuel injector O-ring seals with clean engine oil.
    G11293421

    Torque Specification: 20 Nm

  63. G11310563

    Special Tool(s):  310-200-02

  64. G11293423

    Torque Specification: 20 Nm

  65. G11310565

    Special Tool(s):  310-200-02

  66. G11293425

    Torque Specification: 20 Nm

  67. NOTE: Tighten the bolts in the indicated sequence.
    Fig 6: Left Side Fuel Rail Bolts Tightening Sequence
    G11293426Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Torque Specifications:

      Bolt 2 30 Nm

      Bolt 3 30 Nm

      Bolt 1 30 Nm

  68. G11293409

    Special Tool(s):  303-1450

  69. CAUTION: Make sure that the spark plugs are aligned correctly.
    G11310570

    Check that the vertical section of the T mark located on top of the spark plug, is aligned to no more than 45 degrees either side from the adjoining fuel injector.

  70. G11293408

    Torque Specification: 8 Nm

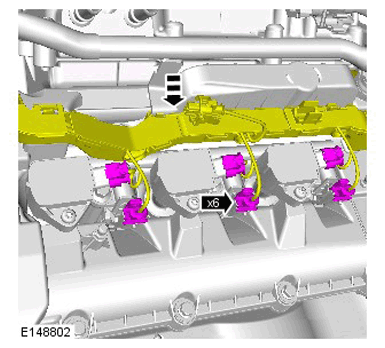

  71. G11293482

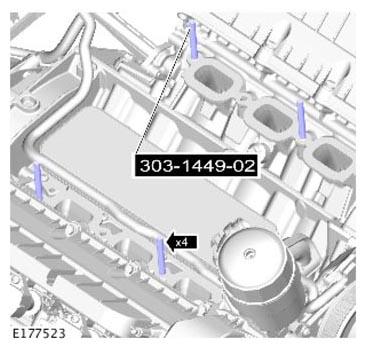

  72. CAUTION: If a new cylinder head has been installed then the special tool 303-1449-02 without the thread must be used to install the supercharger.
    NOTE: New taptite bolts when used cut their own threads on the first application.
    G11310591

    Special Tool(s):  303-1449-02

  73. CAUTION: Make sure that the mating faces are clean and free of foreign material.
    NOTE: Install new gaskets.

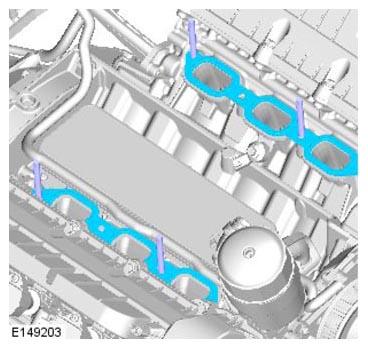

    G11293174

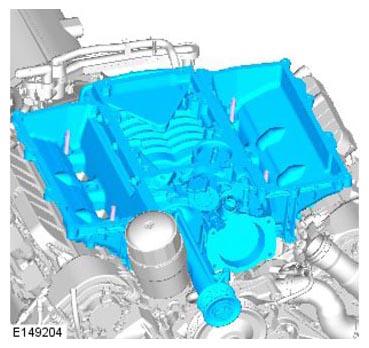

  74. CAUTION: Make sure that the mating faces are clean and free of foreign material.
    G11293175

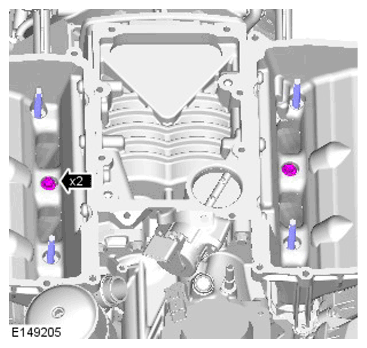

  75. G11293176

    Torque Specification: 25 Nm

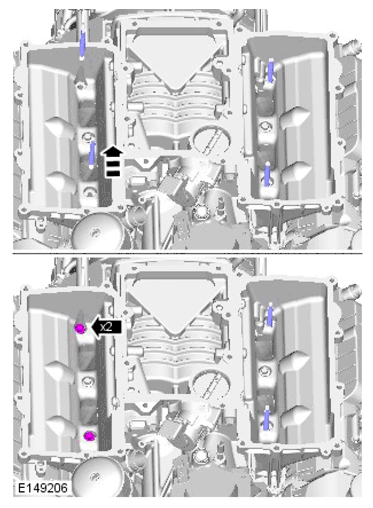

  76. G11293177

    Special Tool(s):  303-1449-02

    Torque Specification: 25 Nm

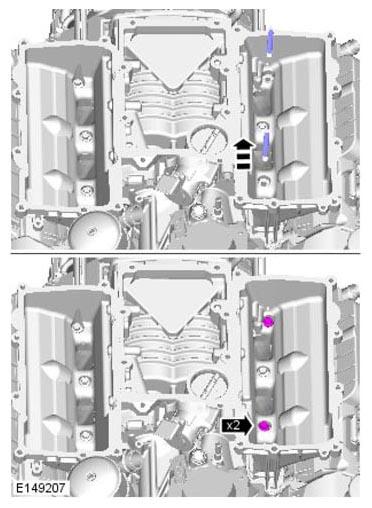

  77. G11293178

    Special Tool(s):  303-1449-02

    Torque Specification: 25 Nm

  78. CAUTION: Only tighten the bolts finger-tight at this stage.
    NOTE: Install a new gasket.

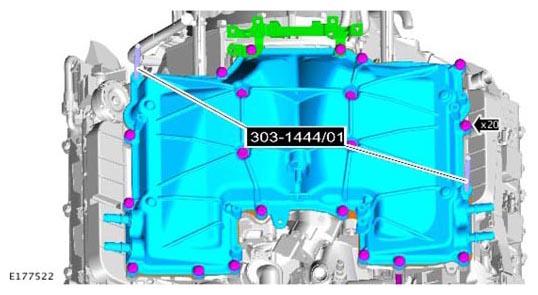

    G11310597

    Special Tool(s):  303-1444-01

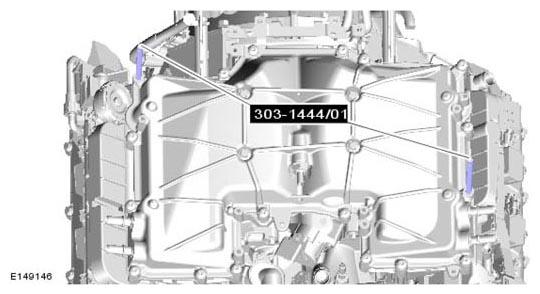

  79. G11293141

    Special Tool(s):  303-1444-01

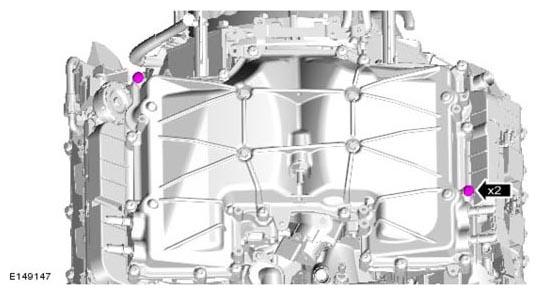

  80. CAUTION: Only tighten the bolts finger tight at this stage.
    G11293142

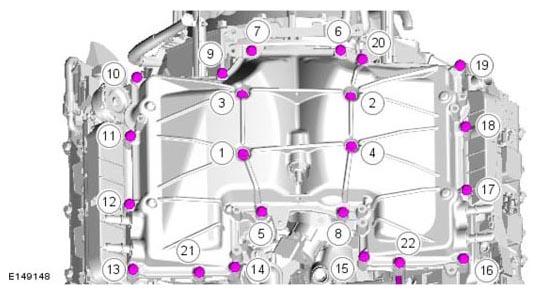

  81. CAUTION: Tighten the bolts in the sequence shown.
    Fig 7: Intercooler Cover Bolts Tightening Sequence
    G11293143Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque Specification: 25 Nm

  82. CAUTION: This fuel pipe can be re-used, inspect for signs of damage. Renew if necessary.
    NOTE:
    • Remove and discard the blanking caps.
    • Install the bolts and unions finger tight.
    G11286155
  83. CAUTION: Tighten the bolts and unions in the sequence shown.

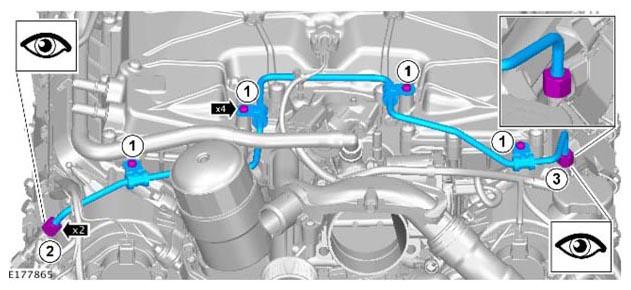

    Fig 8: Fuel Pipe Bolts Tightening Sequence (Crossover Pipe) Engine Valve Clearance (Cold)
    G11310602Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque Specifications:

    M6 bolts 11 Nm

    Unions 21 Nm

  84. G11299873

    Torque Specification: 21 Nm

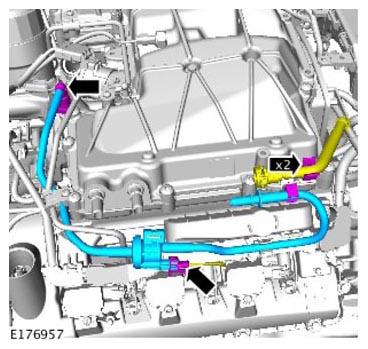

  85. NOTE: Remove and discard the blanking caps.
    G11310416

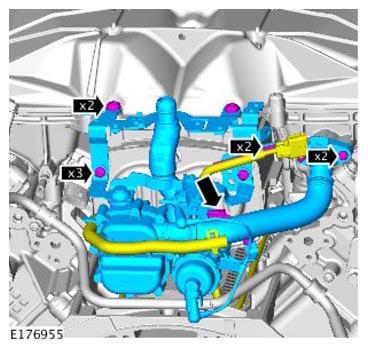

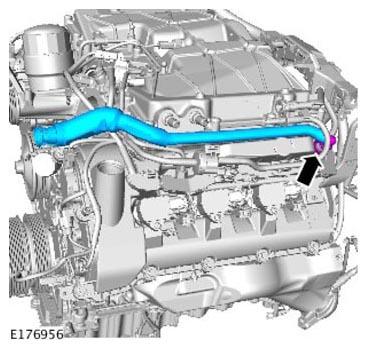

  86. G11310415
  87. G11310414

    Torque Specifications:

    M8 25 Nm

    M6 10 Nm

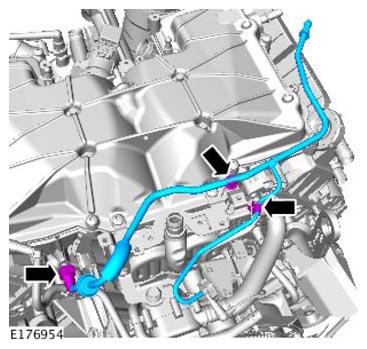

  88. G11310413

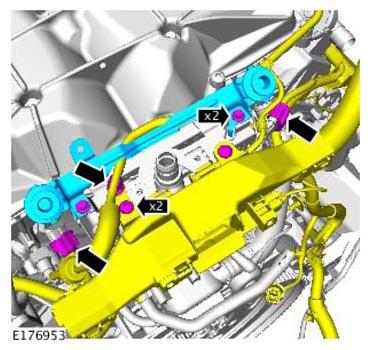

  89. G11310412

    Torque Specification: 10 Nm

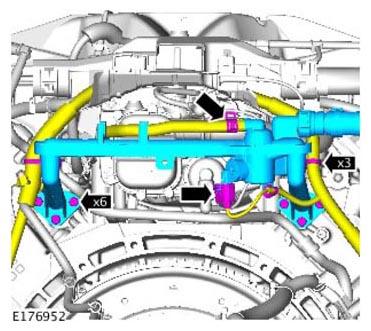

  90. NOTE: Install new O-ring seals.
    G11310411

    Torque Specification: 10 Nm

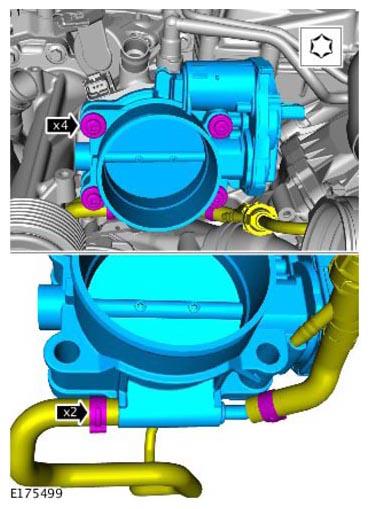

  91. NOTE: Install a new gasket.
    G11310409

    Torque Specification: 10 Nm

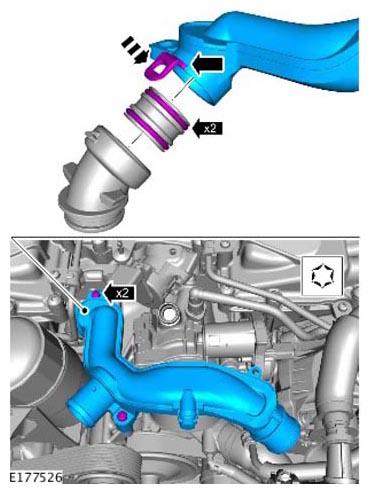

  92. NOTE: Install new O-ring seals.
    G11310611

    Torque Specification: 10 Nm

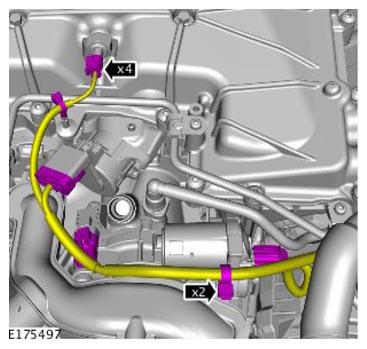

  93. G11310407

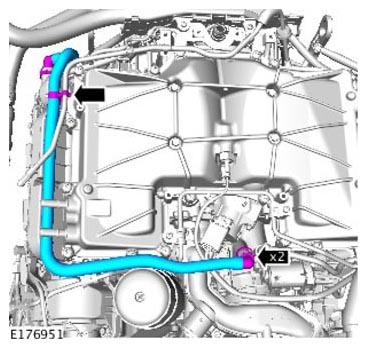

  94. G11310406

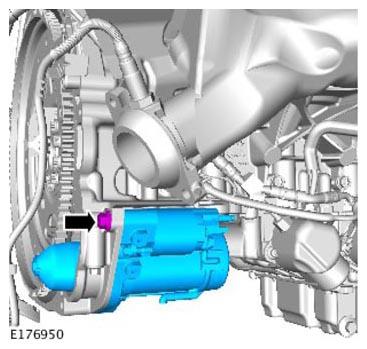

  95. G11310405

    Torque Specification: 40 Nm

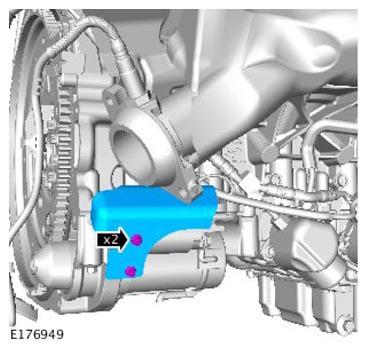

  96. G11310404

    Torque Specification: 3.2 Nm

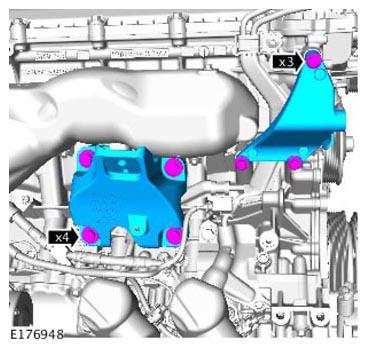

  97. G11310403

    Torque Specifications:

    Engine mounting bracket 48 Nm

    Idler mounting bracket 25 Nm

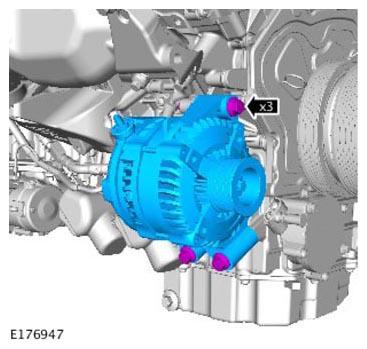

  98. G11310402

    Torque Specification: 48 Nm

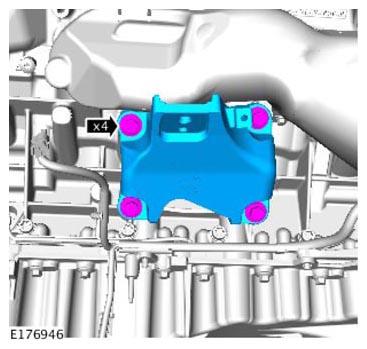

  99. G11310401

    Torque Specification: 48 Nm

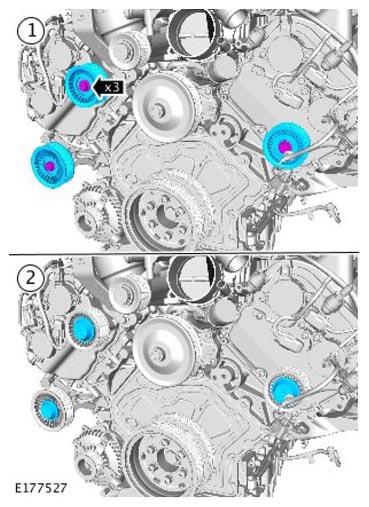

  100. G11310619

    Torque Specification: 47 Nm

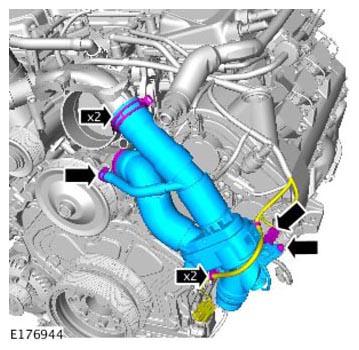

  101. G11310399

    Torque Specification: 9 Nm

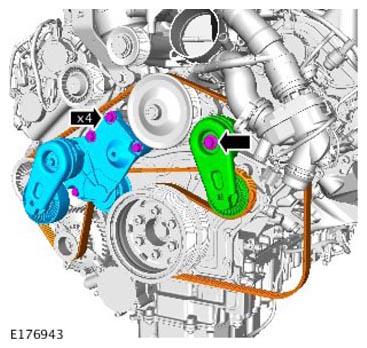

  102. G11310398

    Torque Specifications:

    Accessory belt idler bracket 25 Nm

    Accessory belt tensioner bolt 47 Nm

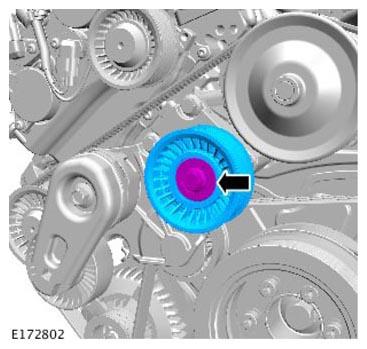

  103. G11310397

    Torque Specification: 47 Nm

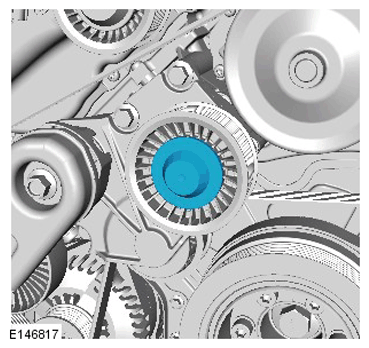

  104. G11293739

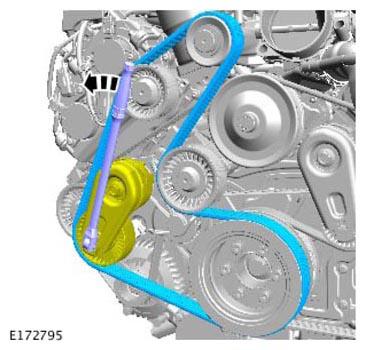

  105. G11310395

    Install the supercharger belt.

  106. Install the engine assembly.

    Refer to: Engine  (Removal).

  107. Install the battery ground cable.

    Refer to: Battery Disconnect and Connect (General Procedures).

  108. CAUTION: Make sure that the engine oil level is reading at least minimum. Follow steps  109 - 115 before starting the engine.

    Start the engine and allow to run for 10 minutes, stop the engine.

  109. CAUTION:
    • Make sure that the selector lever and the gearshift mechanism are in the park (P) position.
    • Make sure that the hood is open.

    Turn on the ignition.

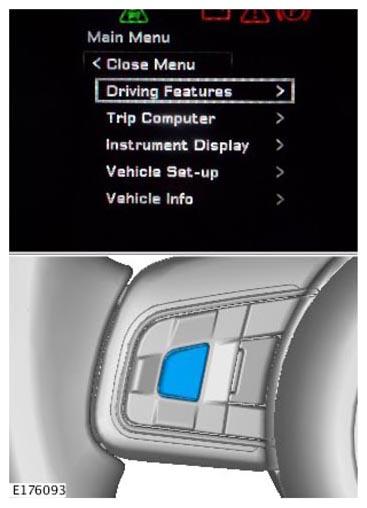

  110. G11309562

    Press the menu button to access the main menu display.

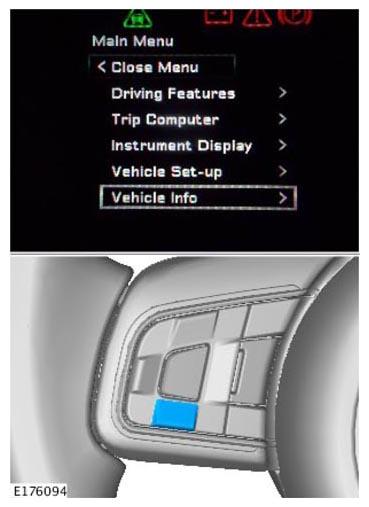

  111. G11309563

    Scroll down the menu to the Vehicle Info selection.

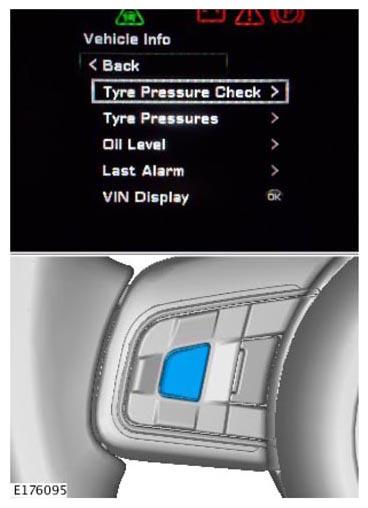

  112. G11309564

    Press the menu button to access the Vehicle Info display.

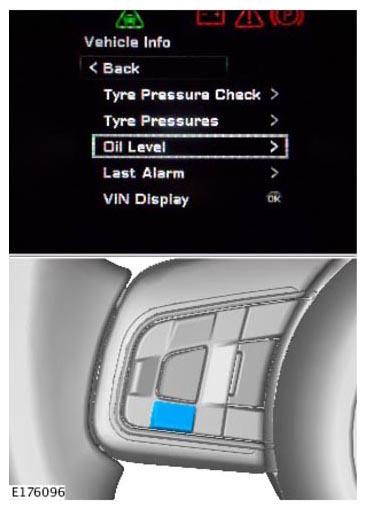

  113. G11309565

    Scroll down the menu to the Oil Level selection.

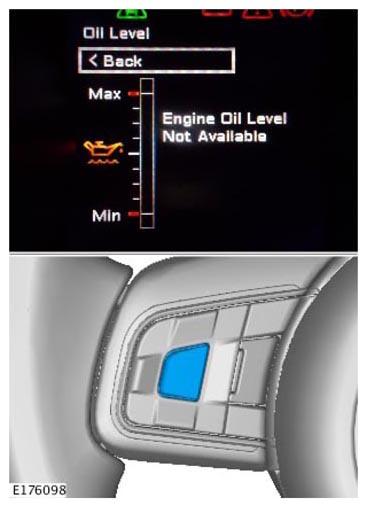

  114. G11309566
    1. Press the menu button to access the Oil Level display.
    2. If the engine oil level is not available, it will be necessary to update the oil level value.

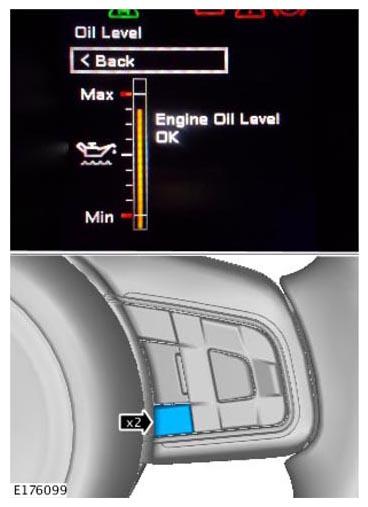

  115. G11309567
    1. Press the cruise control cancel button 2 times to update the oil level value.
    2. Check that the oil level display shows an oil reading.
    3. If necessary top up with engine oil.

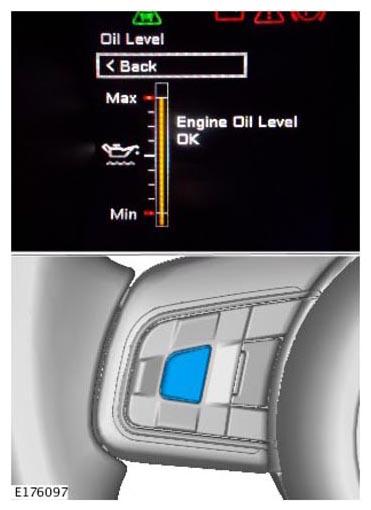

  116. G11309568
    1. Allow 10 minutes for the engine oil level to stabilise if there has been an additional oil top up. Repeat steps 108-116.
    2. Make sure that the average oil level value has now been updated.
  117. Turn off the ignition.
scientia non olet · About LEMON Manuals
