Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Some illustrations may show the engine removed for clarity.
  • Be prepared to collect escaping coolant.
  • Always plug any open connections to prevent contamination.
  1. Refer to: Battery Disconnect and Connect (General Procedures).
  2. Refer to: Petrol and Petrol-Ethanol Fuel Systems Health and Safety Precautions .
  3. Refer to: Fuel System Pressure Release (General Procedures).
  4. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  5. Refer to: Hood (Removal and Installation).

  6. Refer to: Cooling System Draining And Vacuum Filling (General Procedures).

  7. Refer to: Cooling Fan Motor and Shroud (Removal and Installation).
  8. NOTE: Refer to: Front Halfshaft (Removal and Installation).

    The procedure must be carried out on both sides.

  9. Refer to: Front Halfshaft (Removal and Installation).
  10. Refer to: Automatic Transmission/Transaxle - AWD (Removal and Installation).
  11. G11310341
  12. G11310342
  13. G11310343
  14. G11310344
  15. G11310345
  16. G11310346
  17. WARNING: Be prepared to collect escaping fuel.
    G11310347
  18. G11310348
  19. G11310349

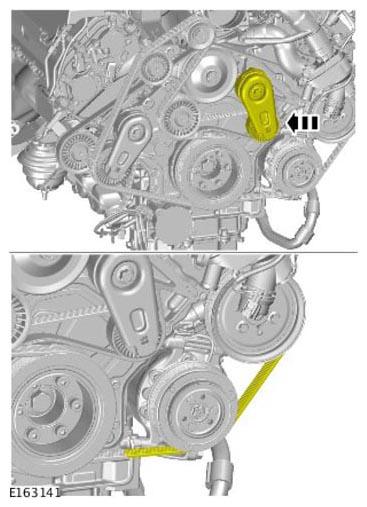

  20. G11302898
  21. G11310351
  22. CAUTION: Do not use excessive force to remove the component.
    G11310352
  23. G11310353

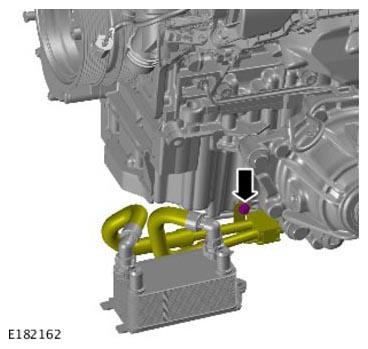

  24. G11310379
  25. Lower the vehicle.
  26. G11310355
  27. G11310356
  28. G11310357
  29. G11310358

    Special Tool(s):  303-1436

    Torque Specification: 40 Nm

  30. NOTE: The procedure must be carried out on both sides.
    G11310359

    Special Tool(s):  303-1435

    Torque Specification: 40 Nm

  31. CAUTION: Discard the nut.

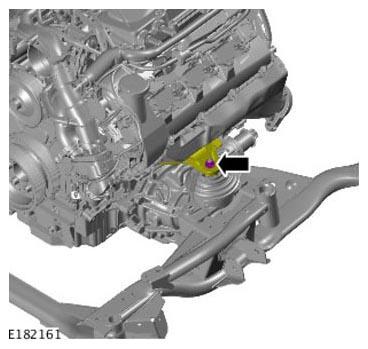

    G11310385
  32. CAUTION: Discard the nut.
    G11310362
  33. CAUTION: Take care not to damage surrounding components.
    G11310363

    Special Tool(s):  303-1436, 303-1435

    General Equipment: Hydraulic jib crane
