Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Removal steps in this procedure may contain installation details.
Some components shown removed for clarity.

Disconnect the battery ground cable.
Refer to: Battery Disconnect and Connect (General Procedures).
WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.
Refer to: OIL PAN EXTENSION (Removal and Installation).
- CAUTION: Take extra care not to damage the component.

  NOTE: Make sure to use the aluminium lug provided on the timing cover to lever against.

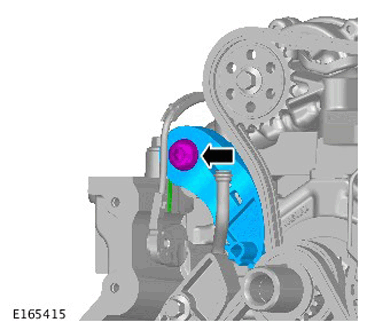

- CAUTION: Take extra care not to drop the bolt.

  Hold the bolt with a magnet to prevent it from dropping.

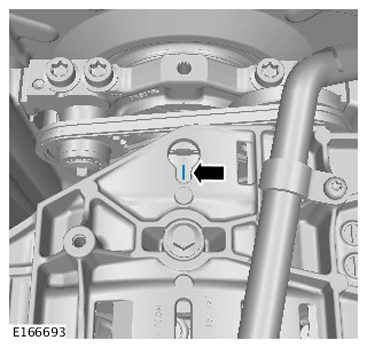

- Make sure the crankshaft is at the timed position.
- multimedia:A supplement to the article is available.

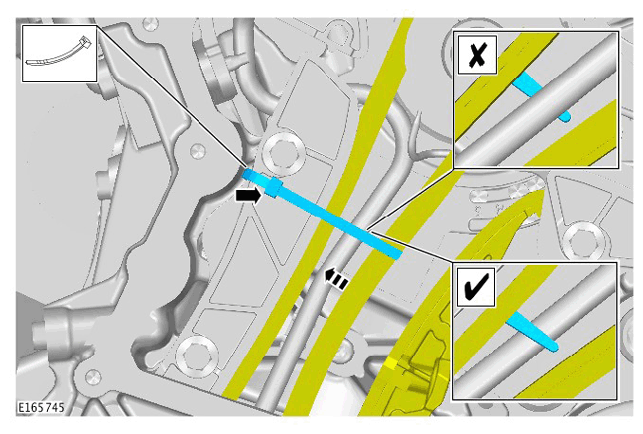

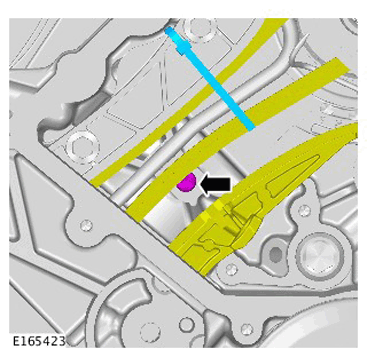

  CAUTION: Using a tie strap, make sure the tension is maintained on the timing chain.
- CAUTION: Use only a long torx socket or torx driver. Do not use a small torx socket, as it may damage the timing chain.

  Hold the bolt with a magnet to prevent it from dropping.

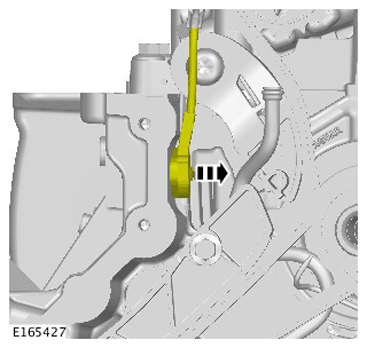

- CAUTION: Take extra care not to damage the oil jet.

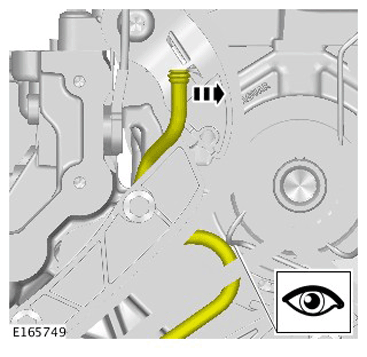

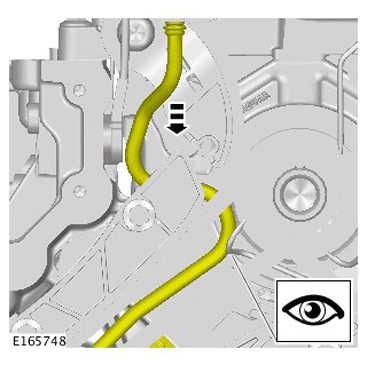

- CAUTION: Take extra care not to damage the oil jet.
- CAUTION: Take extra care not to damage the surrounding components.
- CAUTION: Using a suitable tool, lock the component.
- NOTE: Remove and discard the O-ring seal.
- CAUTION: Discard the bolt.

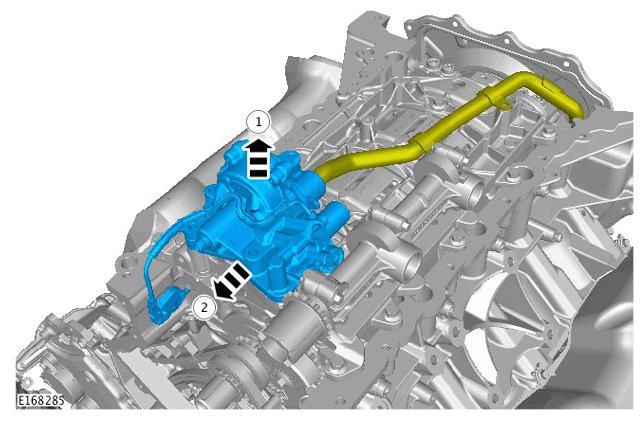

- CAUTION: Take extra care not to damage the component.

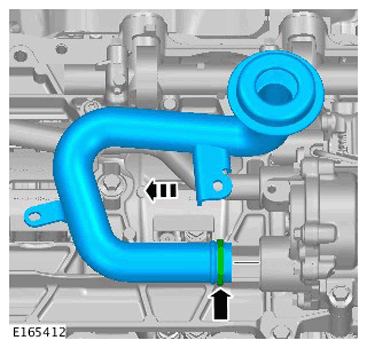

- CAUTION: Remove and discard the O-ring seal.
