Major Structural Components - AWD

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

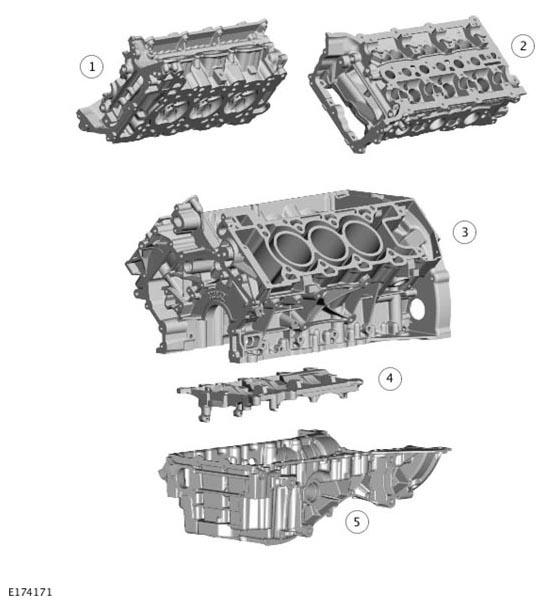

G11299274
ITEM DESCRIPTION
1 Bank 1
2 Bank 2
3 Cylinder block
4 Windage tray
5 Oil pan
