Cylinder Numbering

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

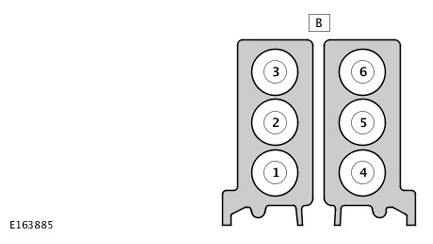

G11286361
ITEM DESCRIPTION
A DIN standard cylinder numbering

DIN cylinder firing order:  1, 4, 2, 5, 3, 6
