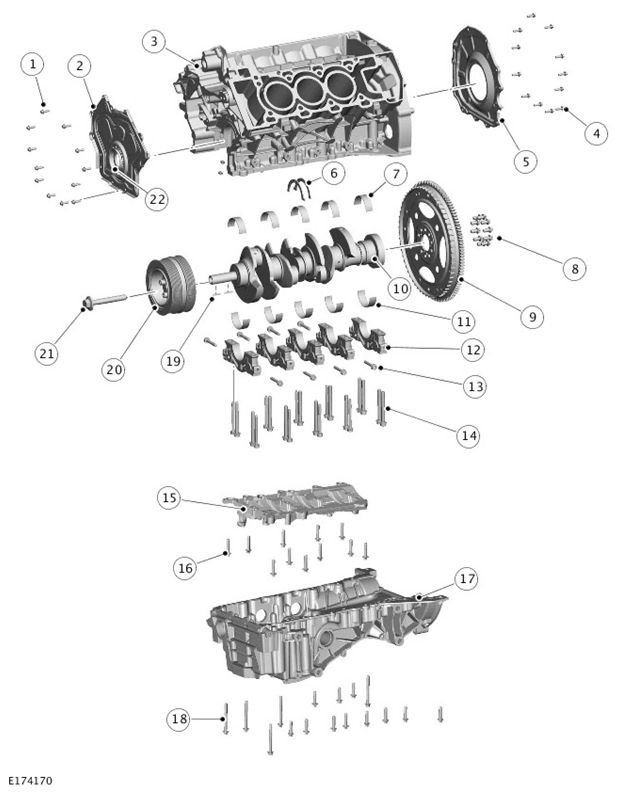

Cylinder Block Components - AWD
WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| 1 | M6 bolt (12 off) |
| 2 | Cylinder block front cover |
| 3 | Cylinder block |
| 4 | M6 bolt (12 off) |
| 5 | Cylinder block rear cover and oil seal |
| 6 | Thrust washer (2 off) |
| 7 | Upper main bearing (5 off) |
| 8 | Bolt (10 off) |
| 9 | Drive plate |
| 10 | Crankshaft |
| 11 | Lower main bearing (5 off) |
| 12 | Crankshaft main bearing cap (5 off) |
| 13 | Cross bolt with underhead sealing washers (8 off) - crankshaft main bearing cap |
| 14 | Inner and outer bolts - crankshaft main bearing cap (20 off) |
| 15 | Windage tray |
| 16 | M8 bolt (11 off) |
| 17 | Oil pan |
| 18 | M8 bolt (16 off) |
| 19 | Woodruff key (2 off) |
| 20 | Crankshaft pulley/vibration damper assembly |
| 21 | Crankshaft damper bolt |
| 22 | Crankshaft front oil seal |
