Component Location
WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

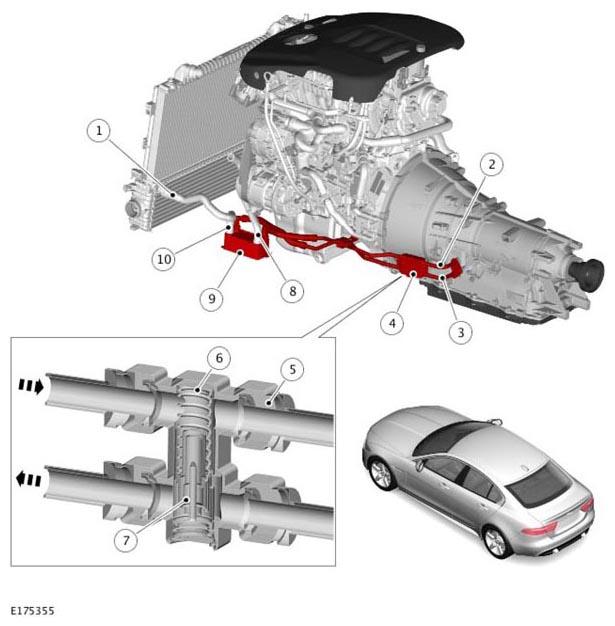

| ITEM |
DESCRIPTION |
| 1 |
Radiator engine coolant outlet |
| 2 |
Return pipe - to transmission |
| 3 |
Supply pipe - from transmission |
| 4 |
Thermostatic valve body |
| 5 |
Thermostatic valve |
| 6 |
Spring |
| 7 |
Thermostatic wax element |
| 8 |
Coolant inlet |
| 9 |
Automatic Transmission Fluid (ATF) cooler |
| 10 |
Coolant outlet |
