Component Location

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

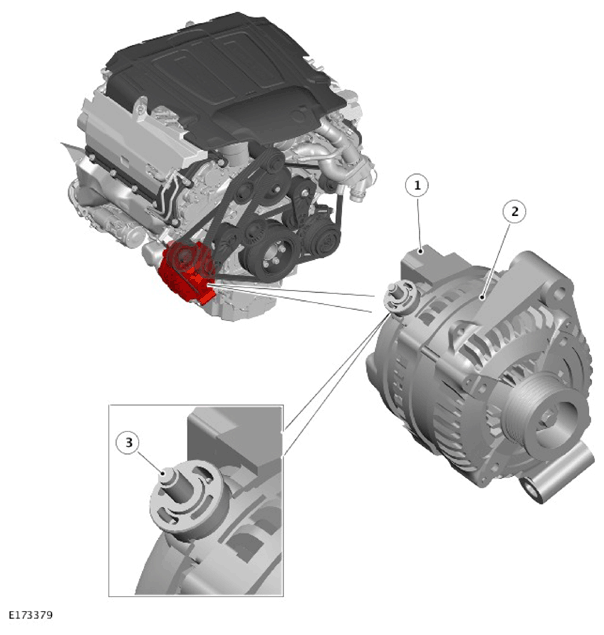

G11310886
ITEM DESCRIPTION
1 Local Interconnect Network (LIN) bus connection
2 Generator
3 Battery positive connection
