Air Spring - SPORTBRAKE (G2136742): Installation
-

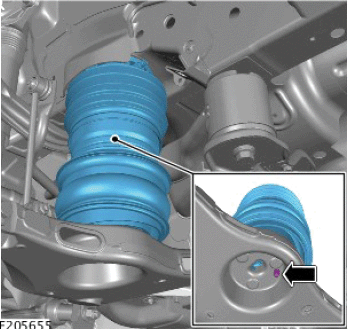

WARNING: Make sure the air spring is correctly located on the lower arm.
Install the air spring.

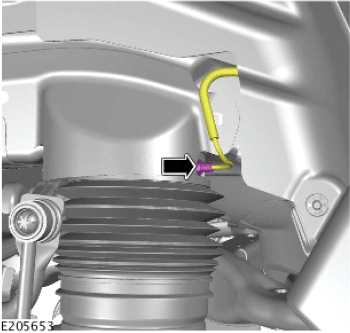

- CAUTION: Do not reuse the air line connector. Always install a new air line connector every time it is released.
Connect the air line.
Renew Part: Air line connector(s) Quantity: 1 .
-
WARNING: Visually inspect the air spring is correctly installed.CAUTION: Do not lower the vehicle to the floor. This step must be completed without the vehicles weight on the wheels.
Using the JLR approved diagnostic equipment, partially pressurize the air suspension.
Refer to: AIR SUSPENSION - MANUAL CONTROL PROCEDURE - SPORTBRAKE
General Equipment : Jaguar Land Rover approved diagnostic equipment
- Install the rear wheel and tire.
Refer to: WHEEL AND TIRE
- Lower the vehicle to the floor.
- Using the JLR
approved diagnostic equipment, fully pressurize the air suspension.
Refer to: AIR SUSPENSION SYSTEM DEPRESSURIZE AND PRESSURIZE - SPORTBRAKE
General Equipment : Jaguar Land Rover approved diagnostic equipment
