Component Location

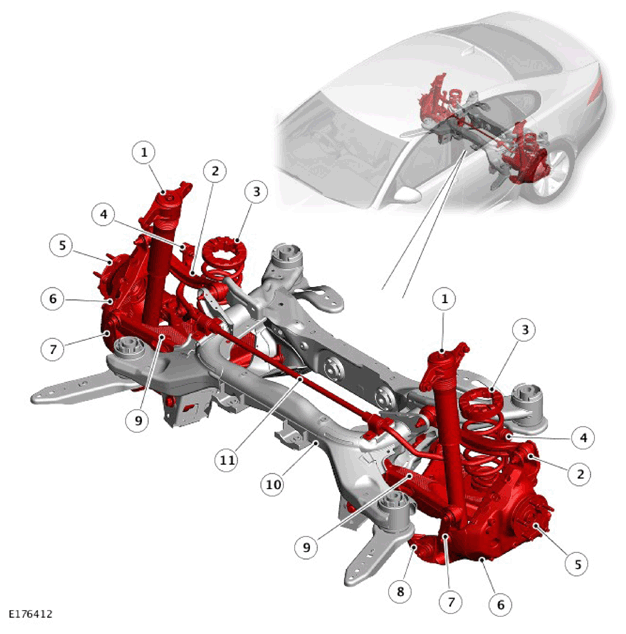

G11326136Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Shock absorber
2 Upper control arm
3 Spring
4 Stabilizer bar link
5 Wheel hub
6 Wheel knuckle
7 Link - lower control arm to wheel knuckle
8 Tie arm
9 Lower control arm
10 Subframe
11 Stabilizer bar
