Air Suspension Compressor (G2909359): Removal

CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. G13965851Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

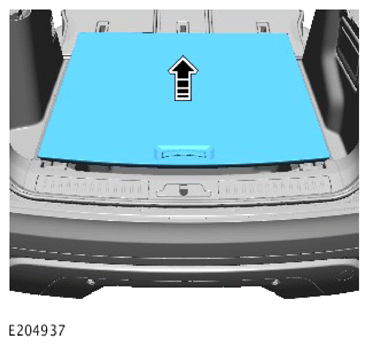

    Remove the loadspace floor panel.

  2. G13965852Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

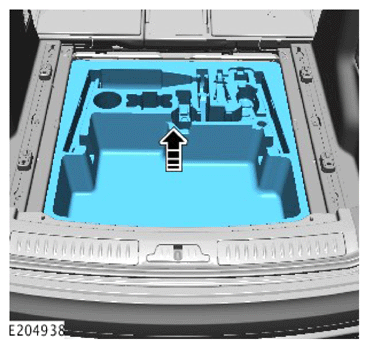

    Remove the loadspace stowage tray.

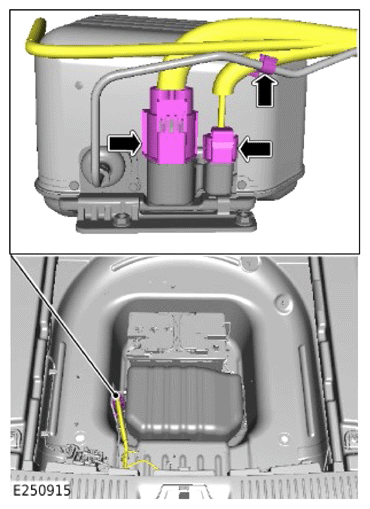

  3. G13965845Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the 2 electrical connectors.
    • Release the wiring harness clip.
  4. G13965846Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

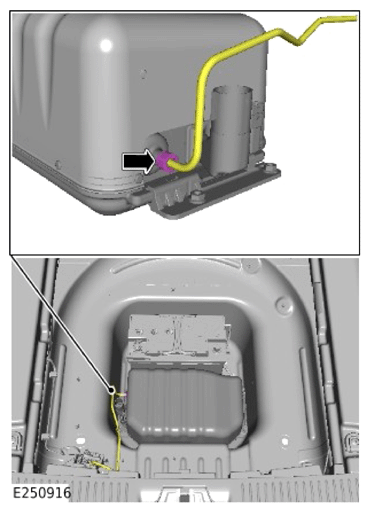

    Disconnect the air line connector.

    Refer to: AIR LINE CONNECTOR

  5. G13965847Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

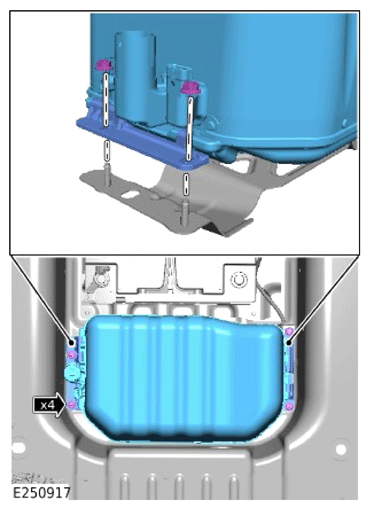

    • Remove the 4 nuts.
    • Remove the air suspension compressor.
  6. NOTE:
    • Do not disassemble further if the component is removed for access only.
    • Repeat this step on the other side.
    G13965849Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

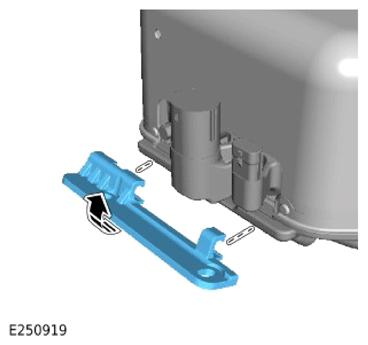

    Remove the bracket.

  7. G13965848Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

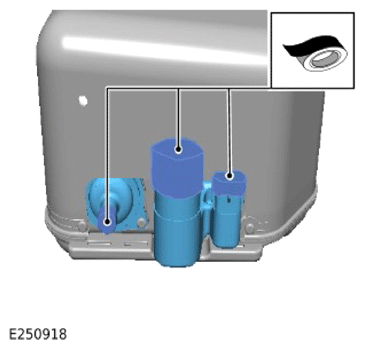

    Use suitable tape to cover the air line and electrical connector openings.

  8. G13920548Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

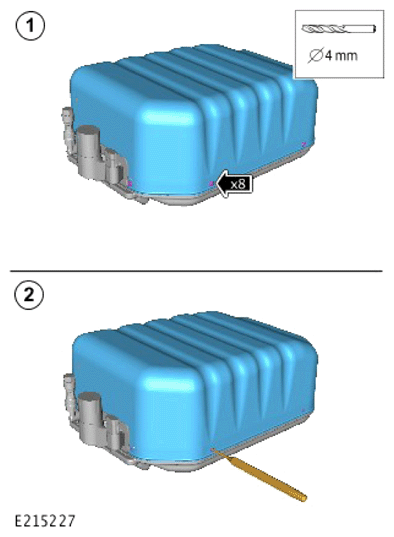

    1. Use a 4 mm drill to remove the head of the rivets.
    2. Use a suitable tool to release the rivet bodies.

      General Equipment  : 2 mm punch

    3. Remove the outer cover.
  9. CAUTION: Do not pull on the electrical connectors to release the clips.

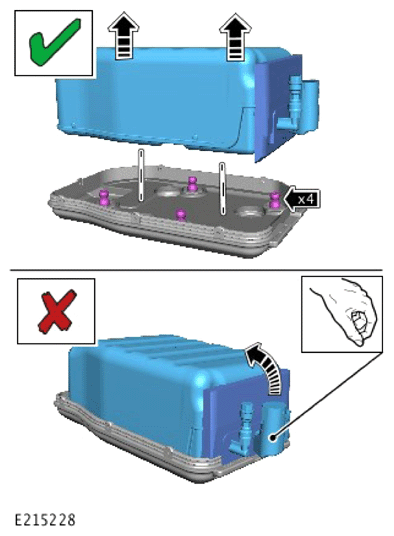

    G13920549Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the inner assembly from the outer assembly.
    • Remove the Noise, Vibration and Harshness (NVH) material.

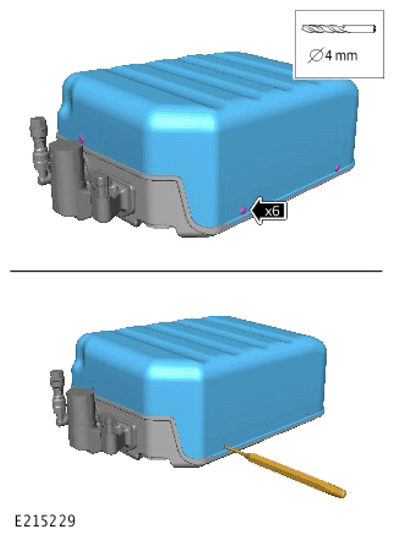

  10. G13920550Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Use a 4 mm drill to remove the head of the rivets.
    • Use a suitable tool to release the rivet bodies.

      General Equipment  : 2 mm punch

    • Remove the inner cover.
  11. Remove all drilling debris.
  12. CAUTION: Do not reuse the air line connector. Always install a new air line connector every time it is released.

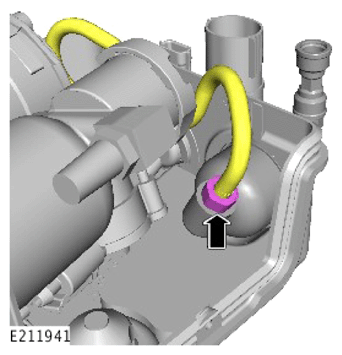

    G13920583Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Disconnect and discard the air line connector.

    Refer to: AIR LINE CONNECTOR

  13. G13920584Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

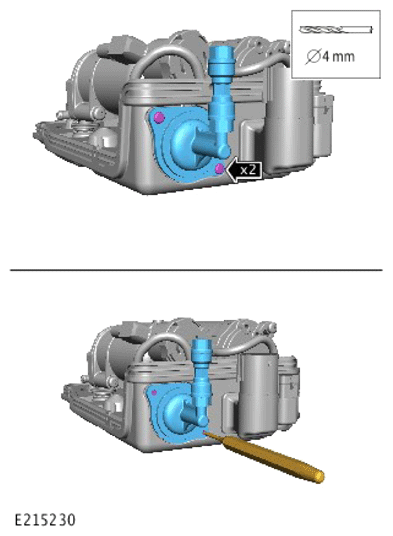

    • Use a 4 mm drill to remove the head of the rivets.
    • Use a suitable tool to release the rivet bodies.

      General Equipment  : 2 mm punch

    • Remove the air suspension compressor expansion chamber.
