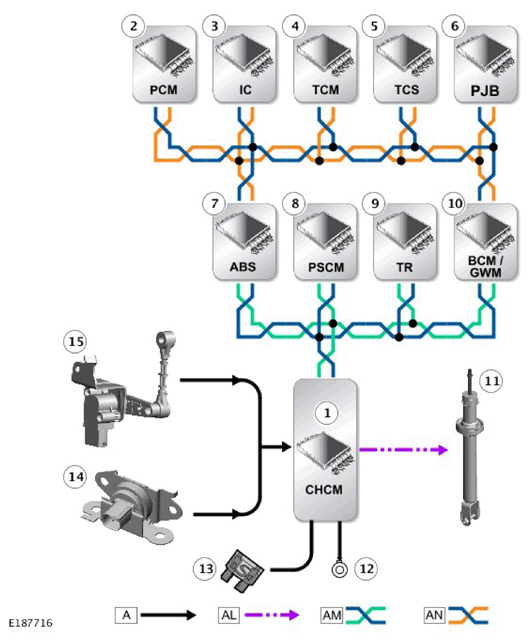

Control Diagram
A = Hardwired; AL = Pulse Width Modulation (PWM); AM = High-speed - CAN Chassis bus; AN = High-speed CAN Powertrain bus.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Chassis Control Module (CHCM) |
| 2 | Powertrain Control Module (PCM) |
| 3 | Instrument Cluster (IC) |
| 4 | Transmission Control Module (TCM) |
| 5 | Transmission Control Switch (TCS) |
| 6 | Passenger Junction Box (PJB) |
| 7 | Anti-lock Brake System (ABS) control module |
| 8 | Power Steering Control Module (PSCM) |
| 9 | Terrain Response (TR) switchpack |
| 10 | Body Control Module/Gateway Module Assembly (BCM/GWM) |
| 11 | Adaptive shock absorber (4 off) |
| 12 | Ground |
| 13 | Power supply |
| 14 | Accelerometer (4 off) |
| 15 | Height sensor (4 off) |
