Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Raise and support the vehicle on a suitable 2 post lift.

    Refer to: Lifting .

  2. Remove the turbocharger.

    Refer to: Turbocharger .

  3. CAUTION: Be prepared to collect escaping coolant.

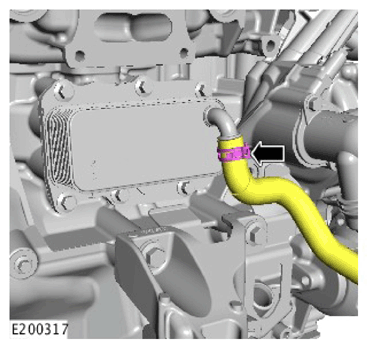

    G11306836

    Remove the oil cooler hose.

  4. CAUTION: Be prepared to collect escaping fluids.

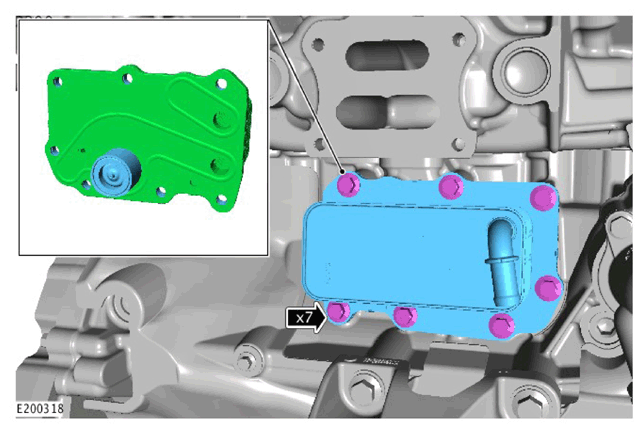

    G11306837
    • Remove the oil cooler.
    • Remove and discard the gasket.
