Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • This procedure contains some variation in the illustration depending on the vehicle specification, but essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Raise and support the vehicle on a suitable 2 post lift.

    Refer to: Jacking .

    General Equipment:  Two-post lift

  2. Disconnect the startup battery ground cable.

    Refer to: Battery Disconnect and Connect .

  3. Remove the crankshaft rear oil seal.

    Refer to: Crankshaft Rear Seal .

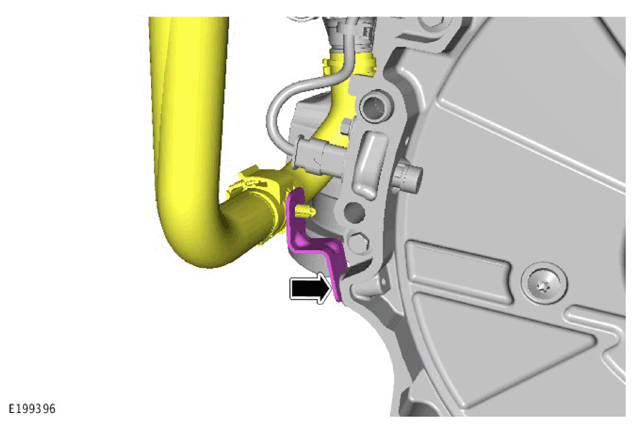

  4. G11306845

    Remove the coolant pipe bracket.

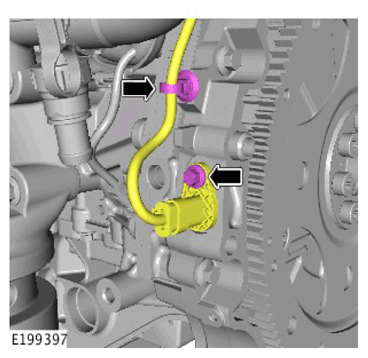

  5. G11306846

    Remove the crankshaft position (CKP) sensor.

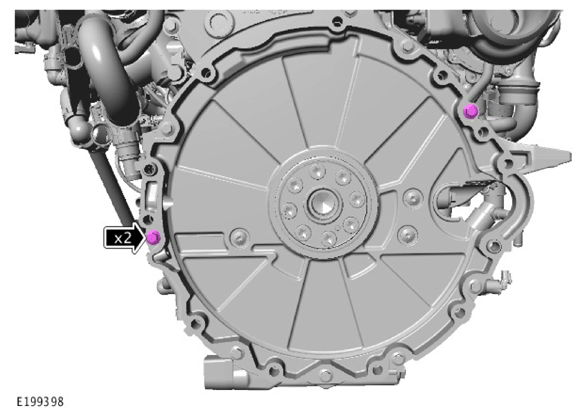

  6. G11306847

    Remove the 2 dowel locating bolts.

  7. CAUTION: Take extra care not to damage the surrounding components.

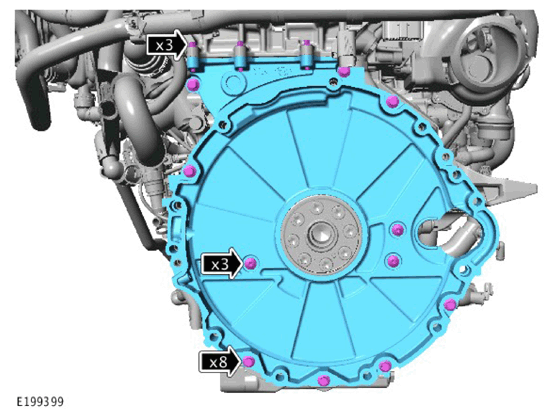

    G11306848
    1. Remove the remaining 14 bolts.
    2. Remove the lower timing chain cover.
  8. CAUTION: Take extra care not to damage the surrounding components.

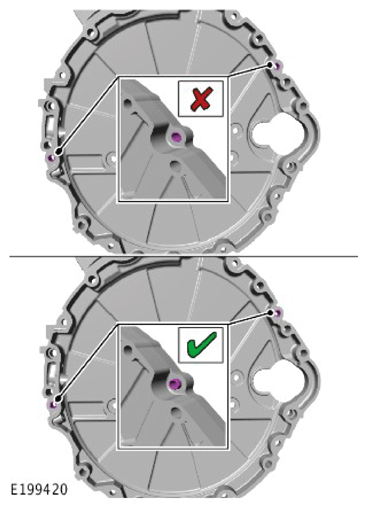

    G11306849

    Using a suitable tool, position the dowels as shown in the illustration.

  9. Using a suitable scraping tool, Make sure that all traces of the old sealant are removed from the mating faces.
