Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Place the vehicle in a well ventilated, quarantined area and arrange ' No Smoking/Petrol Fumes' signs about the vehicle.
CAUTION: Before disconnecting or removing the components, make sure the area around the joint faces and connections are clean.
NOTE:
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Some components shown removed for clarity.
  • Removal steps in this procedure may contain installation details.
  1. Disconnect the startup battery ground cable.

    Refer to: Battery Disconnect and Connect .

  2. Refer to: Fuel Tank Draining .
  3. Raise and support the vehicle.
    WARNING: Make sure to support the vehicle with axle stands.
  4. Remove the rear right wheel and tire.

    Refer to: Wheel and Tire .

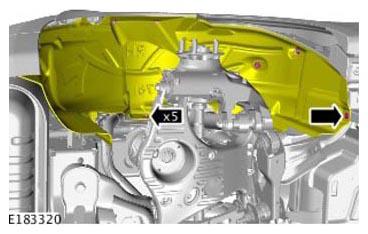

  5. G11314734

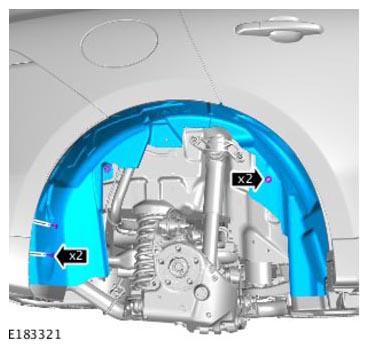

  6. G11314735

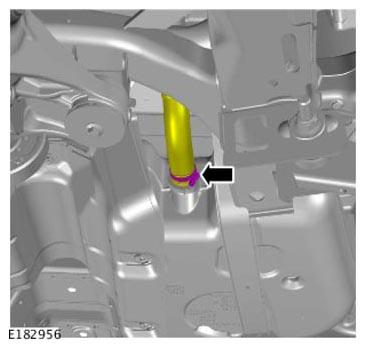

  7. G11314831

    Torque Specification: 3.5 Nm

  8. WARNING: Be prepared to collect escaping fuel.

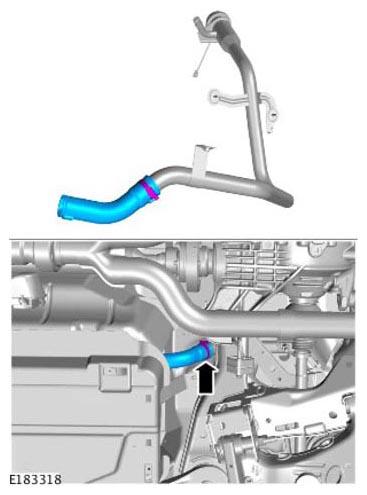

    G11314737

    Torque Specification: 3.5 Nm

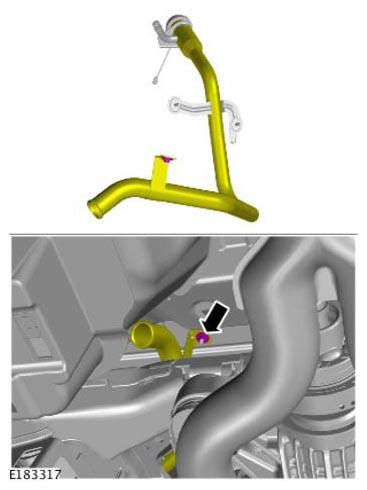

  9. G11314738

    Torque Specification: 7 Nm

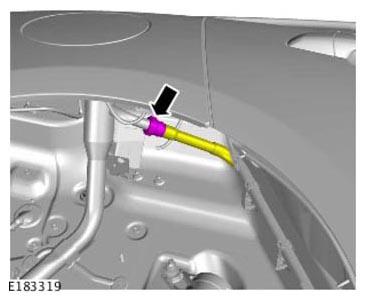

  10. G11314739

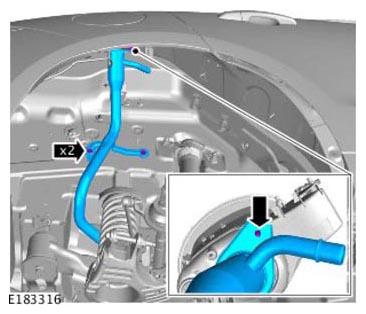

  11. G11314740

    Torque Specification: 7 Nm
