Removal And Installation: Installation

WARNING: This page is about a different car, the 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

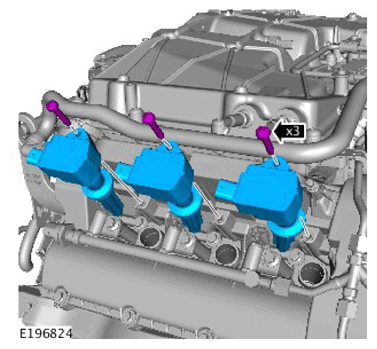

  1. G11307690

    Torque Specification: 7 Nm

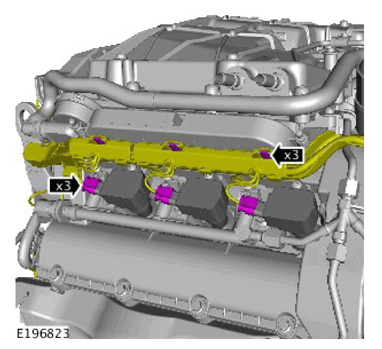

  2. G11307689

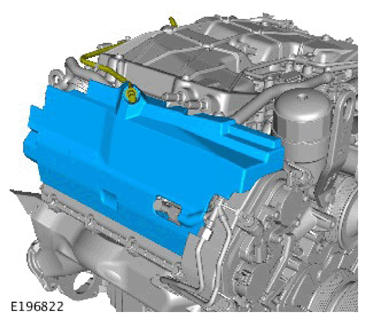

  3. G11308064

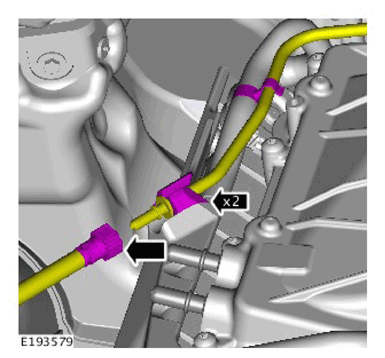

  4. G11308063

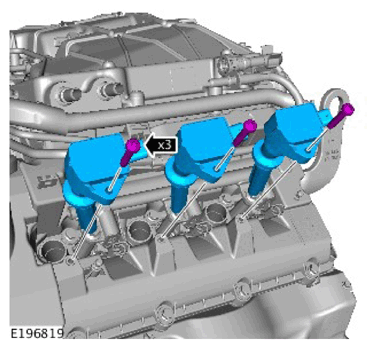

  5. G11308062

    Torque Specification: 7 Nm

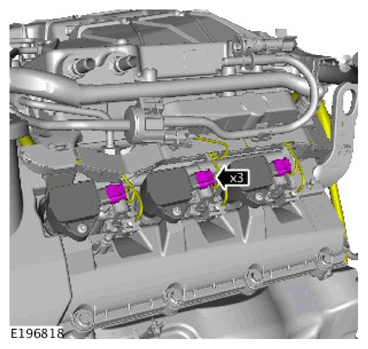

  6. G11308061

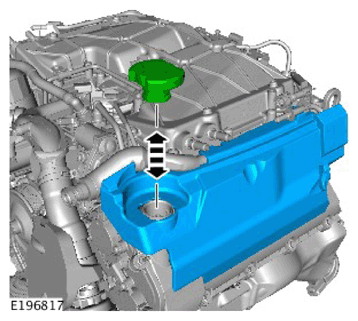

  7. CAUTION: To prevent contamination, make sure to install the oil filler cap after removing the sound proofing pad.
    G11308060

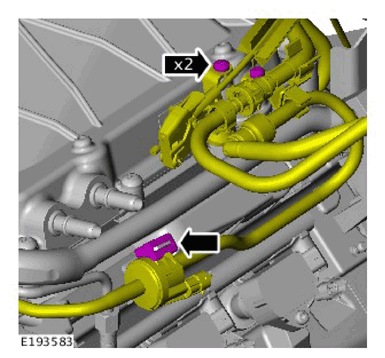

  8. G11308059
  9. Install the engine cover.

    Refer to: Engine Cover - V6 S/C 3.0L Petrol .

  10. Connect the startup battery ground cable.

    Refer to: Battery Disconnect and Connect .
