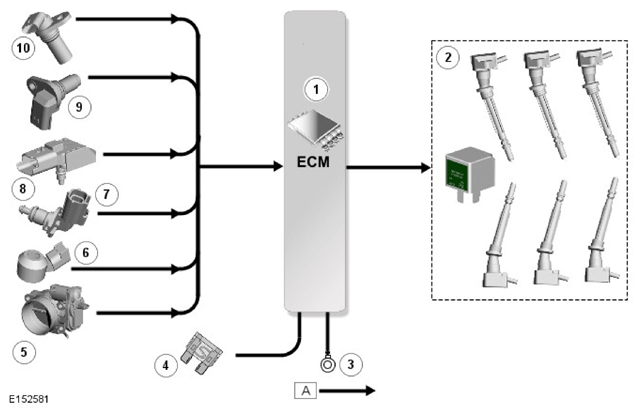

Input And Output Control Diagram
WARNING: This page is about a different car, the 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
A = Hardwired
A = HARDWIRED
| ITEM | DESCRIPTION |
|---|---|
| 1 | Engine Control Module (ECM) |
| 2 | ECM Relay and Ignition Coils (6 Of) |
| 3 | Ground |
| 4 | Power Supply |
| 5 | Throttle Position Sensor (TPS) |
| 6 | Knock Sensor (2 Of) |
| 7 | Engine Coolant Temperature (ECT) Sensor |
| 8 | Manifold Absolute Pressure (MAP) Sensor |
| 9 | Camshaft Position (CMP) Sensor (4 Of) |
| 10 | Crankshaft Position (CKP) Sensor |
