Component Location

WARNING: This page is about a different car, the 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

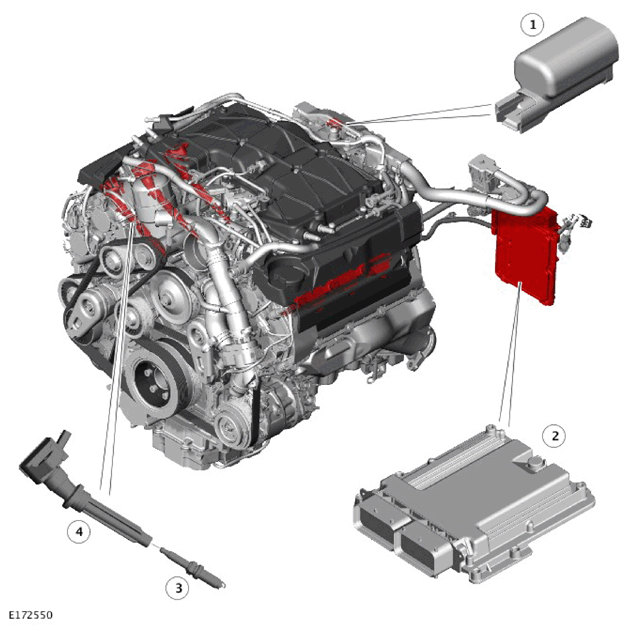

G11308055
ITEM DESCRIPTION
1 RFI (Radio Frequency Interference) suppressor
2 Engine Control Module (ECM)
3 Spark Plug (6 Off)
4 Ignition Coil (6 Off)
