Cylinder Head Components
WARNING: This page is about a different car, the 2020 Jaguar XF and 2019 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

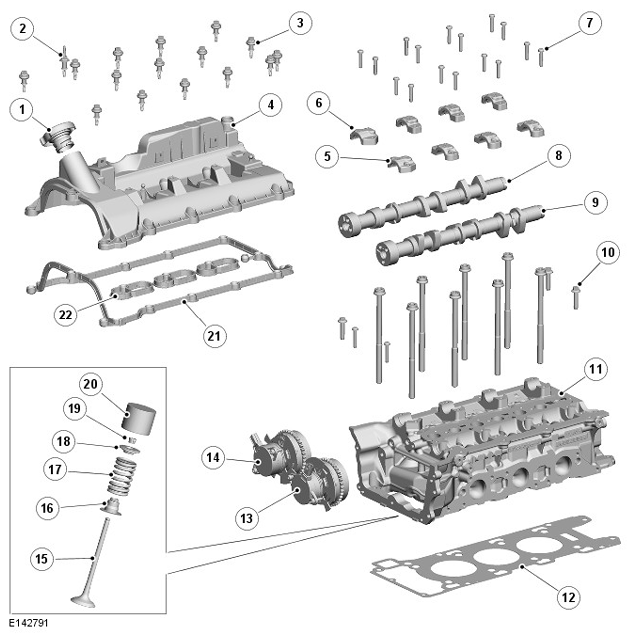

Bank 2 cylinder head shown, Bank 1 cylinder head is similar.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Oil filler cap assembly |
| 2 | Stud, nut, grommet and sleeve |
| 3 | Bolt, grommet and sleeve (15 off) |
| 4 | Camshaft cover |
| 5 | Exhaust camshaft caps (4 off) |
| 6 | Inlet camshaft caps (4 off) |
| 7 | Camshaft cap bolts (16 off) |
| 8 | Inlet camshaft |
| 9 | Exhaust camshaft |
| 10 | Cylinder head bolts (13 off) |
| 11 | Cylinder head |
| 12 | Cylinder head gasket |
| 13 | Variable Camshaft Timing (VCT) actuator (exhaust) |
| 14 | Variable Camshaft Timing (VCT) actuator (inlet) |
| 15 | Valve (12 off (6 inlet, 6 outlet) |
| 16 | Valve spring seat and stem seal (12 off) |
| 17 | Valve spring (12 off) |
| 18 | Valve spring retainer (12 off) |
| 19 | Valve spring collet (24 off) |
| 20 | Valve tappet - hydraulic (12 off) |
| 21 | Camshaft cover gasket |
| 22 | Camshaft cover spark plug/injector gasket (3 off) |
